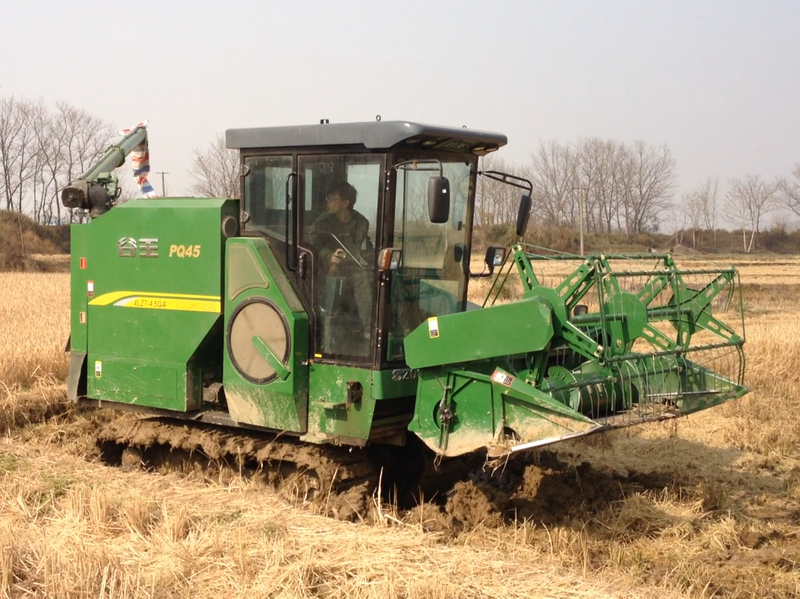

4LZ-4.5QA Rice Combine Harvester

1. Large Feeding Quantity
2. Proper to Paddy Field
3. High Working Efficiency
4. High-end Harvester
Quantity:
  • FOTMA

  • 4LZ-4.5QA

  • Rice harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

1. Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2. Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3. Equipped with luxury cab with air conditioner;
4. With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5. Simple operating console, hydraulic chassis driving system.
6. Equipped with double pump and motor, more easy for steering and transmission.

Model 4LZ-4.5QA
Feed capacity(kg/s) 4.5
Cabin Luxurious cab with air conditioning
Weight(kg) 4350
Diamension Overall length(mm) 5120
Overall width(mm) 2740
Overall height(mm) 2850
Engine Type 4-cylinder in-line water cooling
Rated power(kw) 81
Speed(r/min) 2400
Fuel Diesel
Fuel consumption(kg/hm²) ≤33
Drive system-hydraulic chasis Track Specification 90 mm× 60section× 600mm
Track gauge 1300
Min. ground clearance(mm) 560
Transmission Hydraulic motor
Number of shifting positions Stepless speed
Walking speed(km/h) 0-7.2
Cutting Reel Type Eccentric dial-tooth
Diameter 900
Cutting width(mm) 2500
Blade width(mm) 2500
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading part Grain unloading method 270° hydraulic unloading type
Grain Tank(m³) 1.2(Hydraulic)
Loading 2 units in a 40HC container
