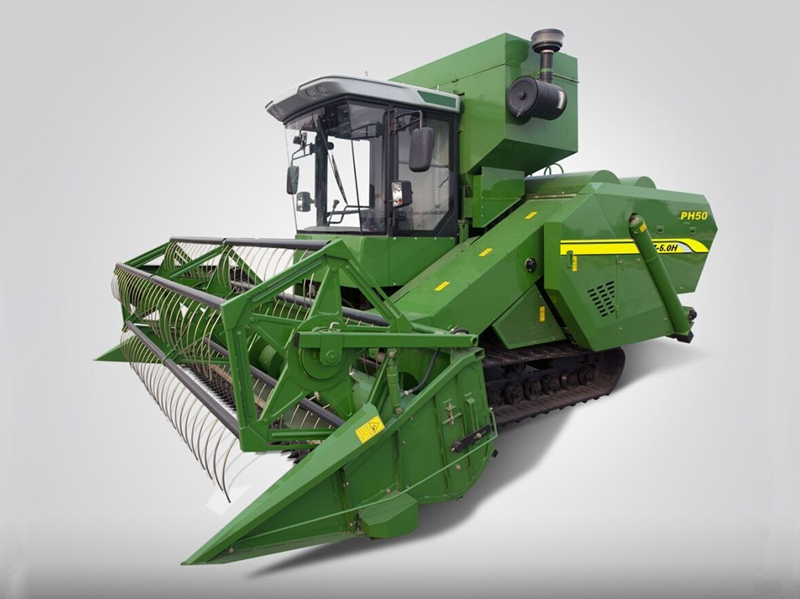

4LZ-5.0H Rice Combine Harvester

The 4LZ-5.0H rice combine harvester is equipped with wide-swath header, high-powered engine, and dual horizontal axial threshing cylinder, which give a strong driving force and achieve thorough threshing performance.
Quantity:
Inquire Add to Basket

  • FOTMA

  • 4LZ-5.0H

  • Rice harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. The dual horizontal axial threshing cylinder presents a long threshing separation stroke, able to achieve thorough threshing and excellent performance.

Model 4LZ-5.0H
Diamension(L×W×H)(mm) Transportation 5750*3660*3200
Working state 5750*5190*3200
Mass(kg) 4200
Min.ground clearance(mm) 320
Production efficiency(hm2/h) 0.4-0.65
Feeding capacity(t/h) 18
Engine Model LR4V5Z-23
Type 4-cylinder, in-line direct-injection water cooling
Rated power(kw) 92
Fuel consumption(kg/hm²) ≤33
Gearbox Mechanical + hydraulic stepless variable speed
Reel Type Eccentric spring-tooth type
Diameter(mm) φ900
Numbers of Reel lever(unit) 5
Lifting Hydraulic
Header Lift Hydraulic
Cutting width(mm) 3200
Diameter of header(mm) φ500
Number of threshing cylinder(unit) 2
Unloading method Mechanical+HST
Loading 3 units in two 40HC containers
