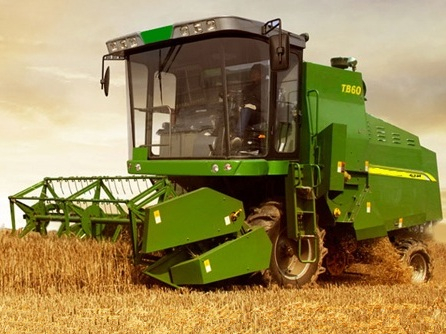

4LZ-6B Wheat Combine Harvester

The 4LZ-6B wheat combine harvester, equipped with 125hp powerful engine, perform a complete and full threshing capacity by using tangential flow + transverse axial flow cylinder threshing and separating technology.
Quantity:
  • FOTMA

  • 4LZ-6B

  • Wheat harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

I. Large feed capacity, high efficiency
1. Equipped with 125hp powerful engine 920mm widened header bridge increases fluent flow of crops  and feed capacity.
2. Capable of threshing and perform a complete and full separation by using tangential flow + transverse axial flow cylinder  threshing and separating technology.
3. Improving threshing components to achieve better threshing and separating effects and a high harvest efficiency.
II. Easy operation, reliable performance
4. Enhanced transmission with a large load-bearing capacity and high operational reliability.
5.Enlarging the screening area by using a reciprocating-type screening system in order to allow the plate to vibrate and the screen to move in opposite directions, would reduce the overall vibration and increase the screening capability, achieving better screening effects.
6. Equipped with GPS navigation system (optional) and alarm device for monitoring the revolving speeds of the axial flow cylinder , the re-thresher and the elevator. It provides a higher degree of automation
Multiple Purposes Machine to Meet More Demands.
III. Easy maintenance, comfortable driving and ride
7.New radiator dust proof cover with high efficiency, providing easy usage and maintenance.
8. New luxurious cabin in with lower temperature, reduced noise and lower vibration, equipped with built-in air conditioner and luxurious seats, providing a comfortable driving and ride based on ergonomic principles.

Model 4LZ-6B
Feed capacity(kg/s) 6.0
Min. ground clearance(mm) 280
Dimension(L*W*H)(mm) 6600*3000*3420
Mass(kg) 5100
Oil consumption(kg/hm2) ≤35
Cutting width(mm) 2510
Engine Model Yuchai YC4A125Z-T21
Type 4-cylinder in-line direct-injection water cooling
Rated power(kw) 92
Drive system-hydraulic chassis Track Specification 90 mm× 52 section× 450mm
Track gauge 1150
Min. ground clearance(mm) 325
Transmission Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions Stepless speed
Walking speed(km/h) 0-5.8
Threshing and cleaning Tangential flow+horizontal axle flow
Unloading Grain unloading type Mechanical unloading
Grain tank volume(m³) 2
Gearbox Mechanical
Loading 1 unit can be loaded in a 40'HQ and a 20'GP containers
