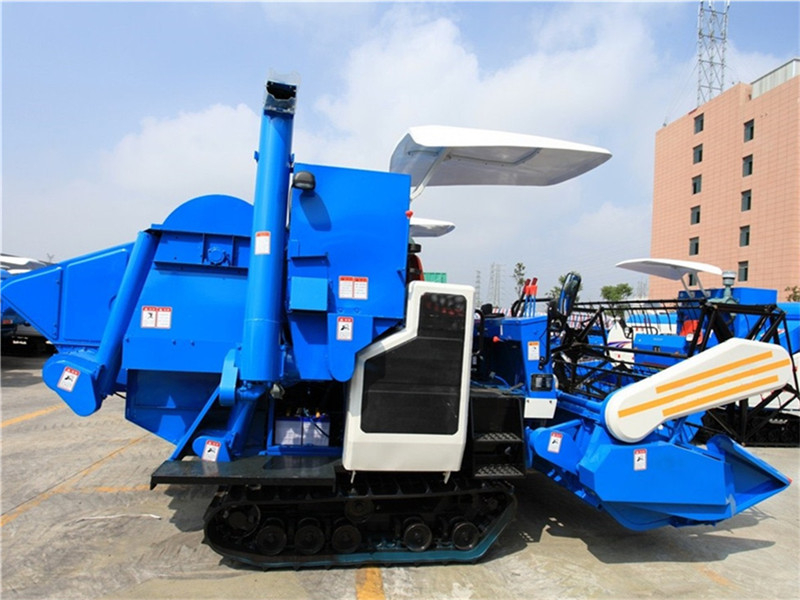

4LZL-2.0
FOTMA
Model | 4LZL-2.0 |
Type | Full feeding, Self propelled, Tracked type |
Dimension(LxWxH) | 5240x2690x2675mm |
Weight | 2650kg |
Cutting width | 2000mm |
Feeding speed | 2.0kg/s |
Track size | 350mm x 90mm x 46 section |
Min ground clearance | 200mm |
Gearbox | 6F+6R mechanical |
Speed range | 1.71-5.28km/h |
Engine horsepower | 52kw(70hp)/2800rpm |
Fuel consumption | 6-8L/h(20-28.5kg/hm2) |
Working capacity | 0.2-0.4 hm2/h |
Total loss rate | Rice≤3.0%, Wheat≤1.5% |
Impurity rate | ≤2.0 % |
Breakage rate | ≤1.5% |
Reliability | ≥93% |
Ground pressure | ≤24kpa |
Cleaning type | Double sieves+blower+re-thresher |
Grain unloading method | Sacked and auger unloading |
Grain Tank | 0.3m³(200kg) or 0.7m3(600kg) |
