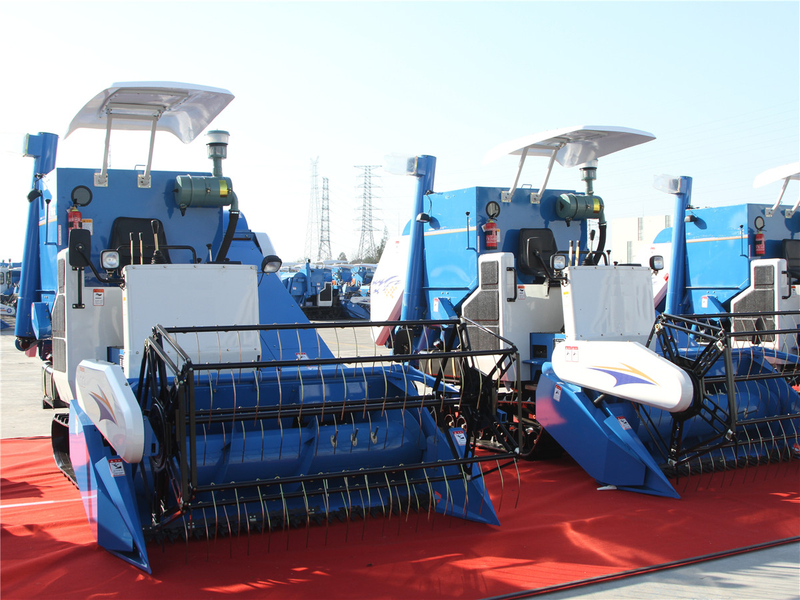

4LZL-4.0 Rice & Wheat Combine Harvester

1.Enlarged grain tank with 600kg capacity with unloading anger to short unloading time and make it much easier
2. Underframe is designed like Chinese eight, make it easier to pass some paddy field
3.Seed roller and thresh sieve is much bigger than old model, which improved the capability of grain threshing and collecting, also reduced the loss rate.
4.Our engine is from Chinese Top diesel engine factory, powerful, reliable and less fuel consumption.
Quantity:
  • 4LZL-4.0

  • FOTMA

1.Enlarged grain tank with 600kg capacity with unloading anger to short unloading time and make it much easier
2. Underframe is designed like Chinese eight, make it easier to pass some paddy field
3.Seed roller and thresh sieve is much bigger than old model, which improved the capability of grain threshing and collecting, also reduced the loss rate.
4.Our engine is from Chinese Top diesel engine factory, powerful, reliable and less fuel consumption.
Model 4LZL-4.0
Type                Full feeding, Self propelled, Tracked type
Dimension(LxWxH) 5260x2850x2680mm
Weight 2700kg
Cutting width 2000mm
Feeding speed 4.0kg/s
Track size 400mm x 90mm x 46section
Min ground clearance 200mm
Gearbox 6F+6R mechanical or HST
Travelling speed range 0-5.7km/h
Engine horsepower 65kw/2400rpm
Fuel consumption 21-27kg/hm2 (8-10L/h)
Working capacity 0.3-0.5 hm2/h
Total loss rate Rice3.0%, Wheat1.5%
Impurity rate              2.0 %
Breakage rate 1.5%
Reliability 93%
Ground pressure       24kpa
Cleaning type Double sieves+blower+re-thresher
Grain unloading method auger unloading
Grain Tank 700kg
