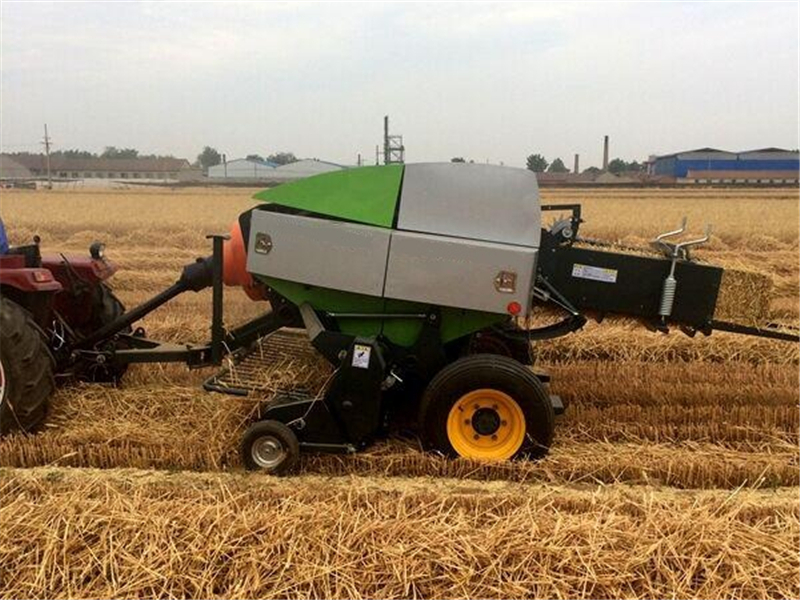

9YFQ-1.9 New Square Baler

1. Offset design to compact tractor for above 45hp.
2. Widely used in hay, wheat, rice, corn, soybean, alfalfa and etc.
3. Larger working width, lower lost.
4. Higher efficiency than round baler, since strapping and ejecting bales while tractors walking.
5. Bales length and density adjustable
Quantity:
  • 9YFQ-1.9

  • FOTMA

The square baler is designed for picking up and packing hay,crop straw and stalk into square bales.

Features:
1. Offset design to compact tractor for above 45hp.
2. Widely used in hay, wheat, rice, corn, soybean, alfalfa and etc.
3. Larger working width, lower lost.
4. Higher efficiency than round baler, since strapping and ejecting bales while tractors walking.
5. Bales length and density adjustable.

Advantages:
1.2P traction system is very effective especially at a field  corner.
2.wide and center-mounted pickup can be lifted up high. it’s easy to cross a ridge
3.square baler can works continuously without stoping tractor.

Model 9YFQ-1.9
Cross section 36*46cm
Bale length 30-120cm adjustable
Pickup width 190cm
Knotting time 0.7s
Plunger frequency 70-110/m
PTO speed 540RPM
Working speed 4-7km/h
Tractor required Over 45hp
Overall size 400*249*180cm
Structural weight 1700kgs
