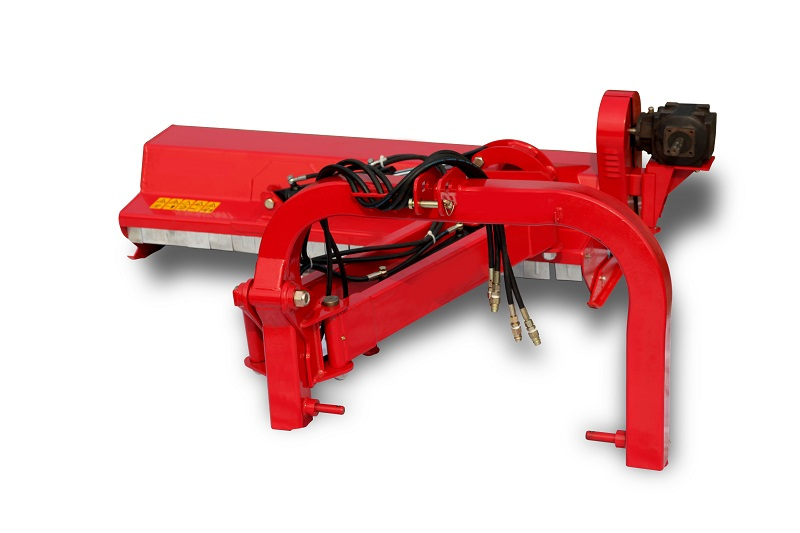

AGF Flail Mower

1. High strength mulching blades;
2. Safety flaps;
3. Solid hitch.
Quantity:
  • AGF
  • FOTMA

The Verge Flail Mowers are flail mowers with hydraulic arm for clearing larger, wider areas, roadsides verges, orchards and various inclining and declining land surfaces;

Specially designed for universal use the head of the mower can be operated in line with the tractor or offset for verge maintenance and field boundaries.

Features:
1. The verge Mowers are suitable for roadside verge, tree trimming and general mulching;
2. Hydraulic side adjustment;
3. Hydraulic inclining adjustment;
4. Rear roller wheel;
5. High power 50hp gearbox;
6. Self leveling;
7. High strength mulching blades;
8. Safety flaps;
9. Extra strong and designed with safety in mind;
10. Support legs for storage;
11. Solid hitch.

Model AGF140 AGF160 AGF180 AGF200 AGF220
Dimensions(L*W*H) 1800*1850*1020mm 2000*1850*1020mm 2200*1850*1020 2400*1850*1020mm 2600*1850*1020mm
Structure weight 598kg 628kg 658kg 688kg 718kg
Cutting width 1400mm 1600mm 1800mm 2000mm 2200mm
Working efficiency 4600-12400m2/h 5300-14200m2/h 6000-16000m2/h 6700-17800m2/h 7400-19600m2/h
PTO turning speed 540r/min 540r/min 540r/min 540r/min 540r/min
PTO spline 6x8x1600mm 6x8x1600mm 6x8x1600mm 6x8x1600mm 6x8x1600mm
Power required 40-85hp 45-85hp 55-85hp 60-100hp 70-100hp
