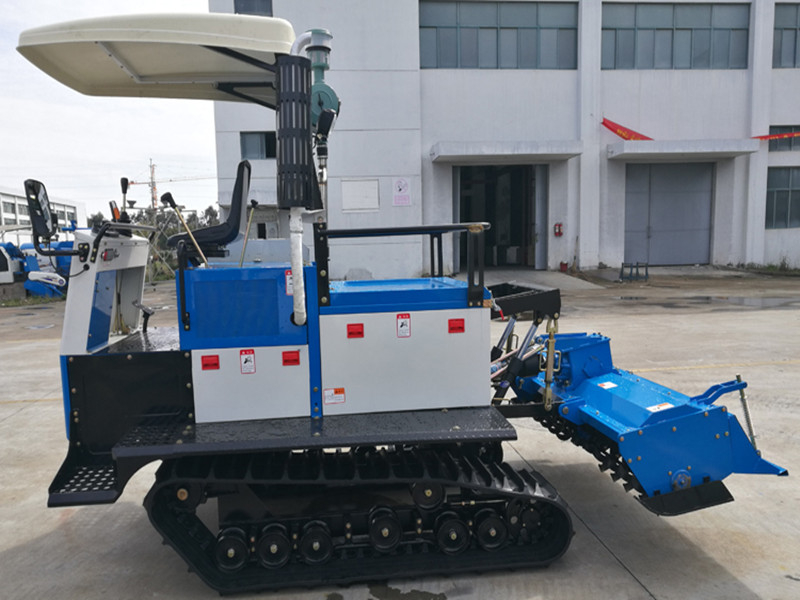

Crawler Type Tiller

1.HST inside;
2.Increased the surface size of water radiator;
3.Reserved connecting pin for self-rescue and fertilize device;
4.High teeth rubber track.
Quantity:
  • 1GZ65A

  • FOTMA

It takes new technology, rubber crawler walking institutions. The former drive improves the rotary tiller anti-sinking performance. Power will be passed from the gear box to the two sides of the knife axis. Rotary knifes are symmetrical distribution. The whole structure is rigorous, high strength, light weight, smooth operation. Field performance is stable and reliable. Our model has high efficiency, low fuel consumption, simple operation, easy maintenance, which can be used for cultivated land.

The machine has a dry land of dry land, paddy soil mud slag pulp, plow surface after planting, good weed recommended coverage. The same depth of farming is easy to subsidence and high operating efficiency, which work one time and can reach the same efficiency of several working of plough and harrow. That is applicable to rice and wheat in dry land cultivation. It is also suitable for the shallow tillage of salt and alkali fields, which plays a role in inhibiting the increase of salt content, as well as the fine cultivation of vegetable tobacco ground, the tillage cultivation of sugarcane, its rotary tillage performance, ridge ditch performance, sowing function, the use of reliability and aquaculture are better than similar domestic models, welcomed by the majority of farmers friends.

Features:

1. Direction control with hydraulic;
2. National III emission standard, powerful engine;
3. High ground clearance(Min. Distance between chassis and ground is 350mm);
4. The rear equipment can be raised up to 550mm;
5. HST inside;
6. Increased the surface size of water radiator;
7. Reserved connecting pin for self-rescue and fertilize device;
High teeth rubber track.


Product Model 1GZ60 1GZ65A
Engine power(kw) 60 65
Productivity(hm2/h) 0.2-0.5 0.25-0.55
Fuel consumption(kg/hm2) Less than 25
Rubber track(Pitch*number*width) 90*48*350
Cultivating width(mm) 2000
Cultivating depth(mm) Dry field cultivating more than 80, paddy field cultivating more than 100
Area on ground(m2) 1.064
Cultivator shaft speed(r/min) 350 450
Weight(kg) 2050 2100
Dimension(mm) 3440*2200*2460 3440*2600*2460
