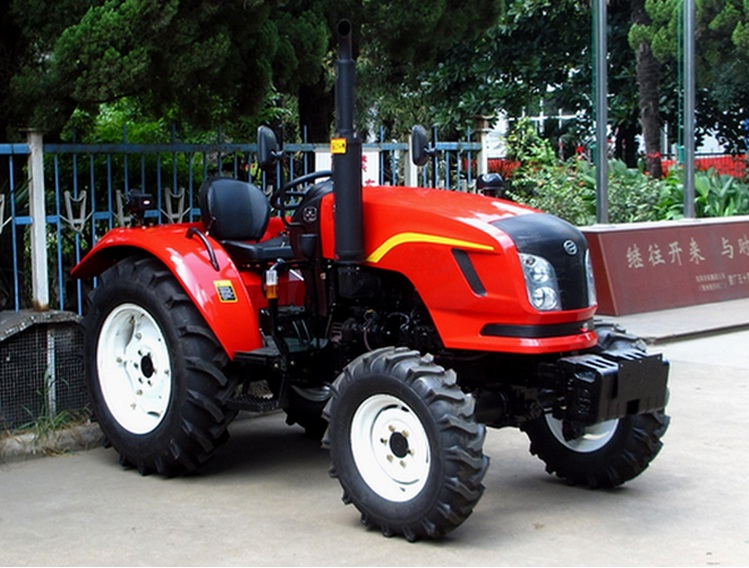

DF304 Tractor

30HP, 4WD
Quantity:
  • Dongfeng, DF

STANDARD FEATURES:
Mid shift 8F/2R
Rear PTO 540/1,000 rpm
Dual stage Clutch
Power steering
Safety start switch
Fiberglass hood
Spring suspension seat
Cat.1, 3-pt hitch
AG tires

OPTIONAL FEATURES:
Hydraulic outlets
Foldable ROPS
Sunshade (ROPS)
Cab
Turf tires
Industrial tires
Paddy tires
Model DF304 DF354 DF404
ENGINE
Type Direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 30(22.1) 35(25.7) 40(29.4)
PTO, HP(kW) 27(19.8) 31.5(23.2) 36(26.5)
Rated Speed, rpm 2500 2400 2400
Cylinders 3 3 4
Displacement, L 1.812 2.230 2.543
Fuel Tank Capacity, L 30 30 30
Drive Train
Transmission 8F/2R 8F/2R
Sliding gear mesh Sliding gear mesh
Min/Max forward speed, km/h 1.73-31.9 1.66-30.68 1.75-32.2
Steering Power
Clutch Dry, dual-stage
Brake Dry, disk
Differential Lock Mechanical
Drive Type 4WD
PTO
Rear PTO. rpm Live 540/1,000
Spline Size 6-ø35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump. L/min 24
Remote Valves(Option) 2
3-Point Hitch CAT. 1
Lift Capacity 610 mm behind@ lift balls, kg 580 580 665
Dimensions
Overall Length, mm 3,290 3,290 3,460
Overall Width, mm 1,480 1,485 1,490
Overall Height(Top of steering), mm 1,620 1,620 1,650
Wheelbase, mm 1,710 1,740 1,818
Min. Ground Clearance, mm 358 358 405
Min.Turning Radius, m 2.50 2.5 2.60
Weight, kg 1,350 1,390 1,438
Tires
AG, Front /Rear 6.50-16/11.2-24 7.50-16/12.4-24 7.50-16/12.4-24
Turf, Front/Rear 7.5-16/12.4-24 7.5-16/12.4-24 7.5-16/12.4-24
Industrial, Front/Rear 10-16.5/16.5-22.5NHS 10-16.5/16.5-22.5NHS 10-16.5/16.5-22.5NHS
