Tractor

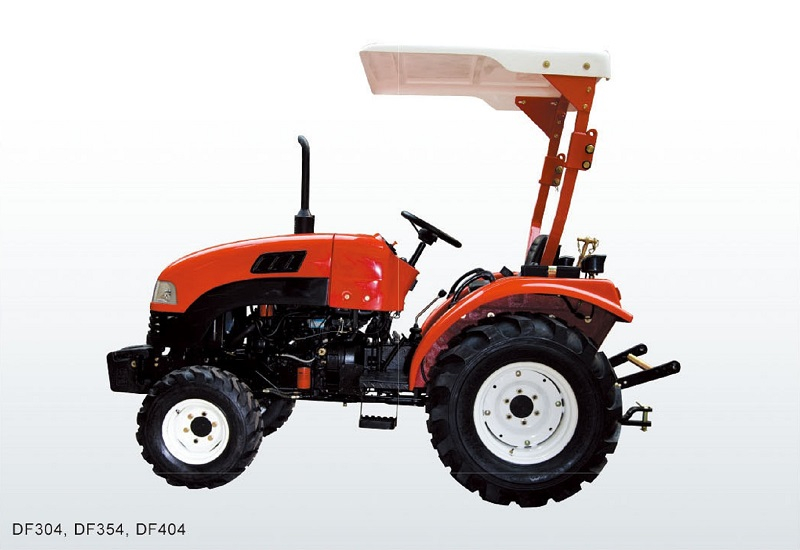

Parameters | Model | DF-304 |
| Drive Type | 4×4 4WD |
| Overall Dimensions L×W×H(mm): | 3235×1485×1536
(Height to steering wheel) |
| Wheel Track(mm) | Front | 1200 |
| Rear | 1100,1200,1300,1400 |
| Wheel Base(mm) | 1699 |
| Ground Clearance(mm) | Under Front Axle | 358 |
| Under Rear Axle | 378 |
| Rated Traction Force(N) | In Paddy Fields | 4950 |
| In Dry Fields | 6940 |
| Construction Mass(kg) | 1330 |
| Min. Turning Radius(m) | 2.50 |
| Theoretical(km/h) | Forward | 1.81, 2.91, 4.59, 6.17,
9.40, 15.14, 23.80, 31.96 |
| Reverse | 2.35, 12.19 |
| Engine Specifications | Model | ZN390T |
| Type | 3-cylinder,water cooled,4-storke cycle |
| Rated Power(kW/hp) | 22.0/30.0 |
| Rated Fuel Consumption(g/kW/h) | ≤275 |
| Rated Speed(rpm) | 2500 |
| Bore ×Stroke(mm) | 90×95 |
| Total Displacement(L) | 1.812 |
Drive
System | Clutch | Dual-function Clutch |
| Gear Box | (4+1)×2 |
| Main Drive | One Pair of Spiral Bevel Gears |
| Differential | Bevel Gear |
| Differential Lock | Jaw Lock |
| Final Transmissions | Spur Gear, External Gearing |
| Traveling Mechanism | Tire | Front | 6.50-16(Stripe Pattern) |
| Rear | 11.2-24(Herringbone Pattern) |
| Steering Gear | Full Hydraulic Steering |
| Brake | Disc type |
Working
Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point(kg) | 4860N/496kg |
| 3-Point Suspension | Category: Ⅰ |
| P.T.O. Shaft | Rotating Speed(rpm) | 540/1000 |
| Spline Size | 6-ф35Rectangular Spline |
