Dongfeng, DF

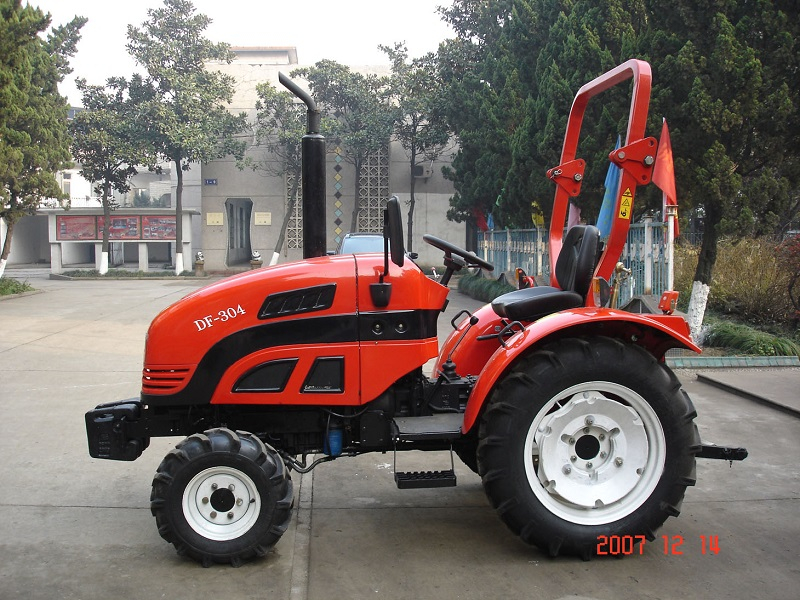

| Tractor Parameters | Dongfeng brand EC series DF-254/304/354/404 tractor specifications form | ||||||||||
| Model | DF-254 | DF-304 | DF-354 | DF-404 | |||||||
| Drive Type | 4×4 4WD | 4×4 4WD | 4×4 4WD | 4×4 4WD | |||||||
| Overall Dimensions L×W×H（mm）: | 3056×1450×2320 (Height to the top of ROPS) | 3308×1400×2400 (Height to the top of ROPS) | |||||||||
| Wheel Track（mm） | Front | 1185 | 1185 | 1200 | 1200 | ||||||
| Rear | 1100-1300 | 1260-1380 | |||||||||
| Wheel Base（mm） | 1676 | 1676 | 1818 | 1818 | |||||||
| Ground Clearance（mm） | Under Front Axle | 292 | 358 | 358 | 378 | ||||||
| Under Rear Axle | 290 | 378 | 378 | 405 | |||||||
| Rated Traction Force（N） | In Paddy Fields | 4435 | 4950 | 5160 | 5760 | ||||||
| In Dry Fields | 6410 | 6940 | 7230 | 7860 | |||||||
| Construction Mass（kg） | 1385 | 1385 | 1485 | 1485 | |||||||
| Min. Turning Radius（m） | 2.4 | 3.2 | 3.2 | ||||||||
| Theoretical Speed (Without creeper gear（km/h) | Forward | 1.43,2.35,3.78,5.08,7.39,12.18,19.60,26.32 | 1.75,2.88,4.63,6.22,9.05,14.90,23.98, 32.21 | ||||||||
| Reverse | 1.88, 9.74 | 2.30,11.92 | |||||||||
| Theoretical Speed(With creeper gear（km/h) | Forward | N/A | N/A | N/A | N/A | ||||||
| Reverse | N/A | N/A | N/A | N/A | |||||||
| Engine Specifications | Model | 3LS25B | 3LS30B | 4LD35B | 4LD40B | ||||||
| Type | 3-cylinder Vertical, water cooled 4 stroke diesel | 3-cylinder Vertical, water cooled 4 stroke diesel | |||||||||
| Rated Power (kw/hp) | 19/25 | 22/30 | 25.7/35 | 29.4/40 | |||||||
| Rated Speed（rpm） | 2400 | 2400 | 2400 | 2400 | |||||||
| Bore × Stroke（mm） | 90×95 | 90×95 | 90×100 | 90×100 | |||||||
| Total Displacement（L） | 1.813 | 1.813 | 2.544 | 2.544 | |||||||
| Drive System | Clutch | dual-funtion clutch | dual-funtion clutch | ||||||||
| Gear Box | （4+1）×2 | （4+1）×2 | |||||||||
| Main Drive | One Pair of Spiral Bevel Gears | One Pair of Spiral Bevel Gears | |||||||||
| Differential | Bevel Gear | Bevel Gear | |||||||||
| Differential Lock | Jaw Lock | Jaw Lock | |||||||||
| Final Transmissions | Spur Gear, External Gearing | Spur Gear, External Gearing | |||||||||
| Travelling Mechanism | Tyre | Front | 6.00-12 | 6.00-12 | 6.50-16 | 7.5-16 | |||||
| Rear | 8.3-24 or 9.5-24 | 9.5-24 | 11.2-24 | 12.24 | |||||||
| Steering Gear | Full Hydraulic Steering | Full Hydraulic Steering | |||||||||
| Brake | sealed shoe | sealed shoe | |||||||||
| Working Device | Hydraulic | Lifting Capacity at 610 mm Behind Lift Point（kg） | 432kg | 665kg | |||||||
| System | 3-Point Suspension | Category: I | Category: I | ||||||||
| P.T.O. | Rotating Speed（rpm） | 540/1000 | 540/1000 | ||||||||
| Shaft | Spline Size | 6-ф35 Rectangular Spline | 6-ф35 Rectangular Spline | ||||||||
