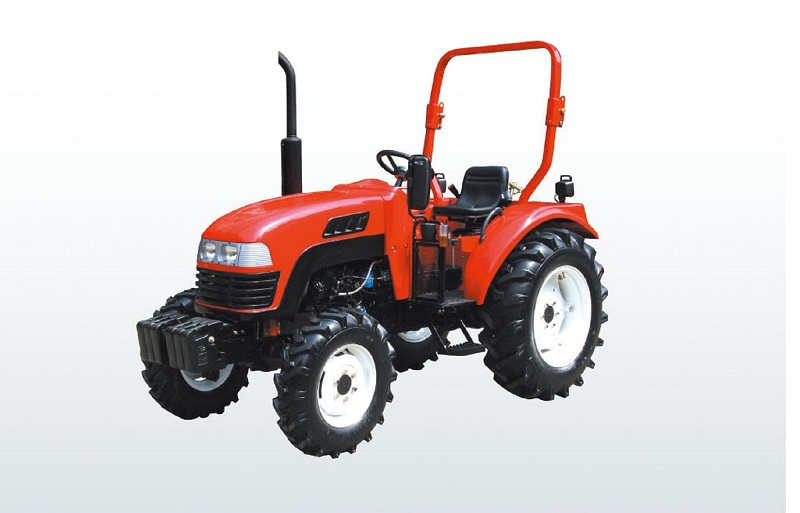

DF304G2 Tractor

30HP, 4WD
Quantity:
  • Dongfeng, DF

MAIN DISPOSITIONS:

shuttle shift gear
synchromesh gear
Double-function clutch
Twin turning speeds of P.T.O.( Speed 540/1000 rpm)
4WD power steering
(4+4)×2 gear box
fiberglass hood
combined meters
Quality seat system
folding ROPS

OPTIONS:

sun shade
rear balance


MAIN SPECIFICATIONS












Tractor Parameters Model DF-254G2 DF-304G2 DF-354G2 DF-404G2
Drive Type 4WD 4WD 4WD 4WD
Overall Dimensions L×W×H(mm): 3350×1480×1524
(Height to steering wheel)
3350×1480×1540
(Height to steering wheel)
3453×1588×1500
(Height to steering wheel)
3453×1588×1581
(Height to steering wheel)
Wheel Track(mm) Front 1100 1100 1200 1200
Rear 110,012,001,300 120,013,001,400
Wheel Base(mm) 1732 1732 1900 1900
Ground Clearance(mm) 290 310 358 405
Construction Mass(kg) 1650 1650 1780 1780
Theoretical(km/h) Forward 1.4,2.12,3.40,4.92,7.27,10.98,17.62,25.69 1.48,2.23,3.58,5.18,7.65,11.56,18.54,26.84 1.35,2.03,3.26,4.73,6.98,10.54,16.92,24.49, 1.41,2.14,3.43,4.96,7.33,11.07,17.76,25.7
Reverse 1.41,2.13,3.92,4.96,7.32,11.06,17.75,25.69 1.49,2.25,3.60,5.22,7.71,11.64,18.68,27.03 1.36,2.05,3.26,4.73,6.98,10.54,16.92,24.49 1.42,2.15,3.45,5.0,7.38,11.15,17.89,25.89
Engine Specifications Model ZN390 ZN490
Type Upright inline cylinder, radiator cooling,   4-storke cycle
hour Rated Power(kW/hp) 18.4 22 25.8 29.4
Rated Speed(rpm) 2400
Bore ×Stroke(mm) 90×95 90×100
Total Displacement(L) 1.813 2.543
Drive System Clutch double function clutch
Gear Box (4+4)×2,shuttle shift gear and synchromesh gearbox
Main Drive one pair of spiral gears
Differential bevel gear
Differential Lock jaw lock
Final Transmissions spur gear,external gearing
Traveling Mechanism Tire  Front 6.00-16 6.50-16 6.50-16 7.5-16
Rear 9.5-24 11.2-24 11.2-24 12.4-24
Steering Gear  power steering
Brake sealed shoe
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(kg) 432 496 580 665
3-Point Suspension category: Ⅰ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-ф35  Rectangular Spline
