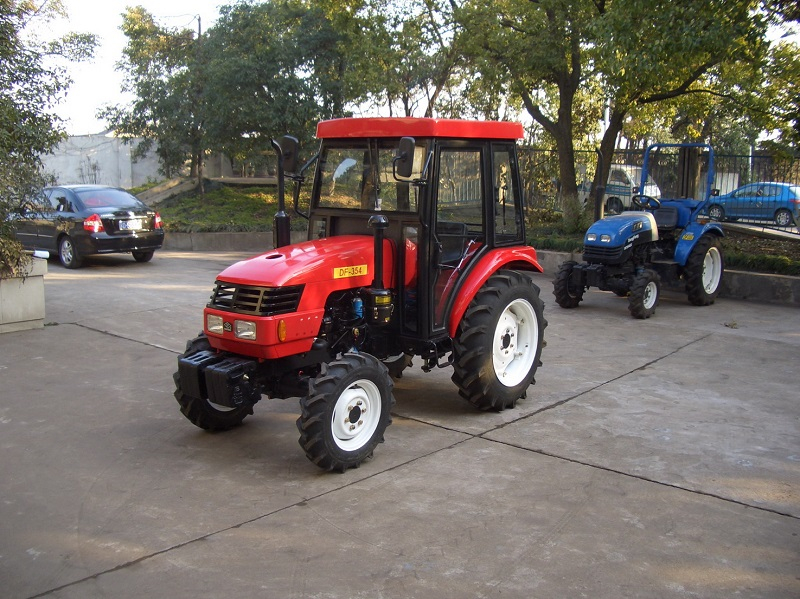

DF354EM Tractor

35HP, 4WD
Quantity:
  • Dongfeng, DF

The DONGFENG Brand wheeled tractor of Model DF-350/354 is a newly developed product series. (Changzhou Tractor Plant). It is powered with the three-cylinder diesel engines that have the features of ample output,less vibration and low noise as well.

Model DF-350/354 tractors are of dual-function type for using in both paddy and dry fields. The designers have cogitated on some components, which can be selected for assembling in order to meet users’ various needs.

In order to fit in with the international market, some components for perfecting the tractor have been designed and developed, such as the hydraulic power steering, two-speed PTO and so on. All of these have improved the performance of the tractor greatly.

This tractor series has the advantages of economic fuel consumption, easy operation, harmonious appearance, compact construction and simple maintenance. It has eight forward gears and two reverse gears, the speeds range from 1.37 to 30.05km/hr. The tractor is also equipped with the linkage type double-acting clutch. It can be used for many farming jobs such as rototilling, plowing, harrowing, seeding, inter-row cultivation and harvesting if suitable farm implements are matched. Meanwhile, this tractor series may be provided with the intensified function of transporting, i.e. the air brake facilities (optional) for trailer, which can improve the safety conditions of a transporting unit (i.e. a four wheel tractor hitched with a trailer for transportation). Really, this tractor series is of an ideal type for the small or medium farms.

Main Dispositions:
(1)Dual-function clutch
(2)Twin turning speeds of P.T.O. 540/1000
(3)powering Steering
(4)Safe start switch
(5)Metal sheet hood
(6)Single meters
(7)Spring Seat system

Options:
(1)Rear wheel ballast
(2)Air pump
(3)ROPS
(4)Sun shade
(5)Hydraulic outlet
(6)Combined meter

Tractor Parameters
Tractor Parameters Model DF-354
Drive Type 4×4 4WD
Overall Dimensions L×W×H(mm): 3370×1500×1620
(Height to steering wheel)
Wheel Track(mm) Front 1200
Rear 1100, 1200, 1300, 1400
Wheel Base(mm) 1739
Ground Clearance(mm) Under Front Axle  358
Under Rear Axle 378
Rated Traction Force(N) In Paddy Fields 5160
In Dry Fields 7230
Construction Mass(kg) 1385
Min. Turning Radius(m) 2.8
Theoretical
speed(km/h)
Forward 1.74, 2.80, 4.40, 5.92, 9.02, 14.54, 22.85, 30.68
Reverse 2.26, 11.70
Engine Specifications Model 395T
Type 3-cylinder Vertical, water cooled,
 4 stroke cycle
Rated Power(kW/hp) 25.80/35
Rated Fuel Consumption (g/kW/h) ≤251.6
Rated Speed(rpm) 2400
Bore × Stroke(mm) 95×105
Total Displacement(L) 2.23
Drive System Clutch Dual-function Clutch
Gear Box (4+1)×2
Main Drive One Pair of Spiral Bevel Gears
Differential Bevel Gear
Differential Lock Jaw Lock
Final Transmissions Spur Gear, External Gearing
Traveling Mechanism Tire  Front 6.5-16 or 7.5-16
Rear 11.2-24 or 12.4-24
Steering Gear Hydraulic Steering
Brake Sealed Shoe
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(kg) 580 kg
3-Point Suspension Category:Ⅰ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-Ø35 Rectangular Spline
