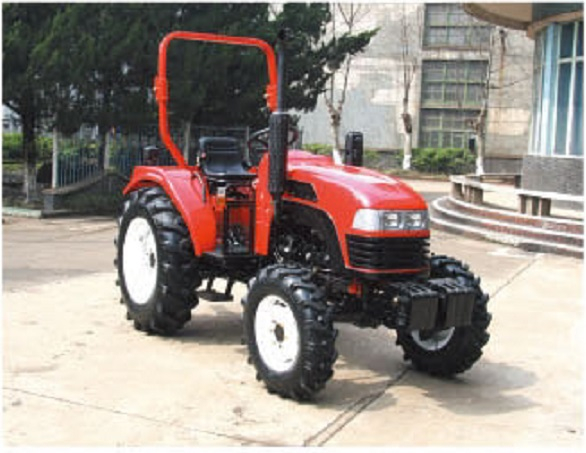

Dongfeng, DF
Tractor Parameters | Model | DF-254G2 | DF-304G2 | DF-354G2 | DF-404G2 | |
Drive Type | 4WD | 4WD | 4WD | 4WD | ||
Overall Dimensions L×W×H(mm): | 3350×1480×1524 (Height to steering wheel) | 3350×1480×1540 (Height to steering wheel) | 3453×1588×1500 (Height to steering wheel) | 3453×1588×1581 (Height to steering wheel) | ||
Wheel Track(mm) | Front | 1100 | 1100 | 1200 | 1200 | |
Rear | 110,012,001,300 | 120,013,001,400 | ||||
Wheel Base(mm) | 1732 | 1732 | 1900 | 1900 | ||
Ground Clearance(mm) | 290 | 310 | 358 | 405 | ||
Construction Mass(kg) | 1650 | 1650 | 1780 | 1780 | ||
Theoretical(km/h) | Forward | 1.4,2.12,3.40,4.92,7.27,10.98,17.62,25.69 | 1.48,2.23,3.58,5.18,7.65,11.56,18.54,26.84 | 1.35,2.03,3.26,4.73,6.98,10.54,16.92,24.49, | 1.41,2.14,3.43,4.96,7.33,11.07,17.76,25.7 | |
Reverse | 1.41,2.13,3.92,4.96,7.32,11.06,17.75,25.69 | 1.49,2.25,3.60,5.22,7.71,11.64,18.68,27.03 | 1.36,2.05,3.26,4.73,6.98,10.54,16.92,24.49 | 1.42,2.15,3.45,5.0,7.38,11.15,17.89,25.89 | ||
Engine Specifications | Model | ZN390 | ZN490 | |||
Type | Upright inline cylinder, radiator cooling, 4-storke cycle | |||||
hour Rated Power(kW/hp) | 18.4 | 22 | 25.8 | 29.4 | ||
Rated Speed(rpm) | 2400 | |||||
Bore ×Stroke(mm) | 90×95 | 90×100 | ||||
Total Displacement(L) | 1.813 | 2.543 | ||||
Drive System | Clutch | double function clutch | ||||
Gear Box | (4+4)×2,shuttle shift gear and synchromesh gearbox | |||||
Main Drive | one pair of spiral gears | |||||
Differential | bevel gear | |||||
Differential Lock | jaw lock | |||||
Final Transmissions | spur gear,external gearing | |||||
Traveling Mechanism | Tire | Front | 6.00-16 | 6.50-16 | 6.50-16 | 7.5-16 |
Rear | 9.5-24 | 11.2-24 | 11.2-24 | 12.4-24 | ||
Steering Gear | power steering | |||||
Brake | sealed shoe | |||||
Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point(kg) | 432 | 496 | 580 | 665 |
3-Point Suspension | category: Ⅰ | |||||
P.T.O. Shaft | Rotating Speed(rpm) | 540/1000 | ||||
Spline Size | 6-ф35 Rectangular Spline |
