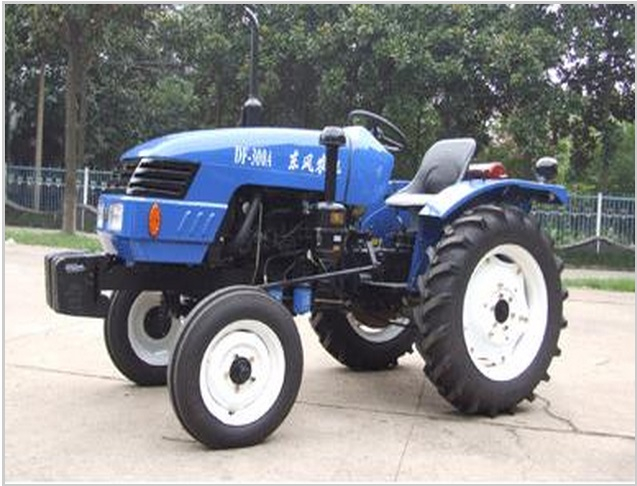

Tractor
Parameters | Model | DF-400 |
| Drive Type | 2WD |
| Overall Dimensions
L×W×H(mm) | 3354×1500×1620(Height to steering wheel) |
| Wheel Track(mm) | Front | 1100(Usually use),1200,1300,1400 |
| Rear | 1100(Usually use),1200,1300,1400 |
| Wheel Base(mm) | 1818 |
| Ground
Clearancre(mm) | Under Front Axle | 424 |
| Under Rear Axle | 405 |
| Rated Traction
Force(N) | In Paddy Fields | 4970 |
| In Dry Fields | 7160 |
| Construction Mass(Kg) | 1390 |
| Min. Turning Radius(m) | 3.2 |
| Theoretical
Speed(Km/h) | Forward | 1.75,2.88,4.63,6.22,9.05,14.90,23.98,32.21 |
| Reverse | 2.30,11.92 |
Engine
Specifications | Model | ZN490T |
| Type | 4-cylinder,Upright inline cylinder
radiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) | 29.4/40.0 |
| Rated Fuel Consumption(g/kw/h) | ≤255 |
| Rated Speed(rpm) | 2400 |
| Bore×Stroke(mm) | 90×100 |
| Total Displacement(L) | 2.543 |
Drive
System | Clutch | Linkage type dual-function clutch |
| Gear Box | (4+1)×2,plannar 3-shaft for main transmission
epicyclic gearing for auxiliary transmission |
| Main Drive | One Pair of Spiral Bevel gears |
| Differential | Bevel Gear |
| Differential Lock | Jaw Lock |
| Final Transmissions | Spur Gear,External Gearing |
Travelling
Mechanism | Tyre | front | 5.00-15 |
| rear | 12.4-24 |
| Steering Gear | Hydraulic streering |
| Brake | Disk type |
Working
Device | Hydraulic
System | Lifting Capacity at
610 mm Behind Lift
Point(Kg) | 665 |
| 3-point Suspension | Category:I |
| P.T.O.Shaft | Rotating
Speed(rpm) | 540/1000 |
| Spline size | 6-φ35 Rectangular spline |
