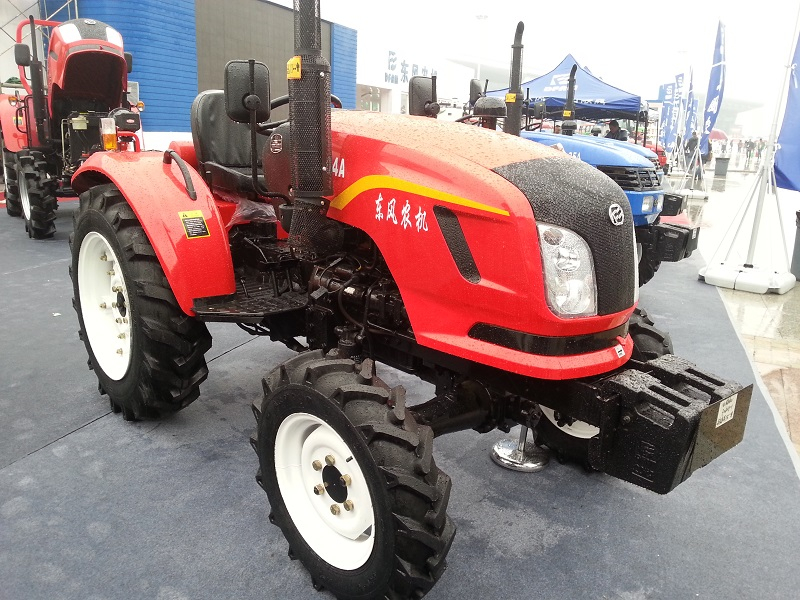

DF404 Tractor

40HP, 4WD

Quantity:



Inquire Add to Basket

Brand:
Dongfeng, DF

STANDARD FEATURES:

Mid shift 8F/2R

Rear PTO 540/1,000 rpm

Dual stage Clutch

Power steering

Safety start switch

Fiberglass hood

Spring suspension seat

Cat.1, 3-pt hitch

AG tires

OPTIONAL FEATURES:

Hydraulic outlets

Foldable ROPS

Sunshade (ROPS)

Cab

Turf tires

Industrial tires

Paddy tires

Tractor Dongfeng DF404 tractor dongfeng 404 DF404

Product List

Agricultural Machinery and Tractor Implements

Combine Harvester

Crawler Tractor

Spare Parts

Walking Tractor and Power Tiller

Wheeled Tractor

Navigation

Home About Us Products News Contact Us

Contact Us

EMAIL: mavis@fotma.com, fotmasale04@gmail.com
TEL: 86-27-67845266
MOB: 86-17740672791
WHATSAPP: +86-17740672791
WECHAT: 8617740672791
ADD: No. 52 Guanggu Avenue, Hongshan, Wuhan, Hubei Province, P.R.China.

Model	DF304	DF354	DF404
ENGINE
Type	Direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW)	30(22.1)	35(25.7)	40(29.4)
PTO, HP(kW)	27(19.8)	31.5(23.2)	36(26.5)
Rated Speed, rpm	2500	2400	2400
Cylinders	3	3	4
Displacement, L	1.812	2.230	2.543
Fuel Tank Capacity, L	30	30	30
Drive Train
Transmission	8F/2R		8F/2R
Transmission	Sliding gear mesh		Sliding gear mesh
Min/Max forward speed, km/h	1.73-31.9	1.66-30.68	1.75-32.2
Steering	Power
Clutch	Dry. dual-stage
Brake	Dry, disk
Differential Lock	Mechanical
Drive Type	4WD
PTO
Rear PTO. rpm	Live 540/1,000
Spline Size	6-035 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump. L/min	24		24
Remote Valves(Option)	2
3-Point Hitch	CAT. 1
Lift Capacity 610 mm behind@ lift balls, kg	580	580	665
Dimensions
Overall Length, mm	3,290	3,290	3,460
Overall Width, mm	1,480	1,485	1,490
Overall Height(Top of steering), mm	1,620	1,620	1,650
Wheelbase, mm	1,710	1,740	1,818
Min. Ground Clearance, mm	358	358	405
Min.Turning Radius, m	2.50	2.5	2.60
Weight, kg	1,350	1,390	1,438
Tires
AG, Front /Rear	6.50-16/11.2-24	7.50-16/12.4-24	7.50-16/12.4-24
Turf, Front/Rear	7.5-16/12.4-24	7.5-16/12.4-24	7.5-16/12.4-24
Industrial, Front/Rear	10-16.5/16.5-22.5NHS	10-16.5/16.5-22.5NHS	10-16.5/16.5-22.5NHS

Model	DF304	DF354	DF404
ENGINE
Type	Direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW)	30(22.1)	35(25.7)	40(29.4)
PTO, HP(kW)	27(19.8)	31.5(23.2)	36(26.5)
Rated Speed, rpm	2500	2400	2400
Cylinders	3	3	4
Displacement, L	1.812	2.230	2.543
Fuel Tank Capacity, L	30	30	30
Drive Train
Transmission	8F/2R		8F/2R
Transmission	Sliding gear mesh		Sliding gear mesh
Min/Max forward speed, km/h	1.73-31.9	1.66-30.68	1.75-32.2
Steering	Power
Clutch	Dry. dual-stage
Brake	Dry, disk
Differential Lock	Mechanical
Drive Type	4WD
PTO
Rear PTO. rpm	Live 540/1,000
Spline Size	6-035 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump. L/min	24		24
Remote Valves(Option)	2
3-Point Hitch	CAT. 1
Lift Capacity 610 mm behind@ lift balls, kg	580	580	665
Dimensions
Overall Length, mm	3,290	3,290	3,460
Overall Width, mm	1,480	1,485	1,490
Overall Height(Top of steering), mm	1,620	1,620	1,650
Wheelbase, mm	1,710	1,740	1,818
Min. Ground Clearance, mm	358	358	405
Min.Turning Radius, m	2.50	2.5	2.60
Weight, kg	1,350	1,390	1,438
Tires
AG, Front /Rear	6.50-16/11.2-24	7.50-16/12.4-24	7.50-16/12.4-24
Turf, Front/Rear	7.5-16/12.4-24	7.5-16/12.4-24	7.5-16/12.4-24
Industrial, Front/Rear	10-16.5/16.5-22.5NHS	10-16.5/16.5-22.5NHS	10-16.5/16.5-22.5NHS
