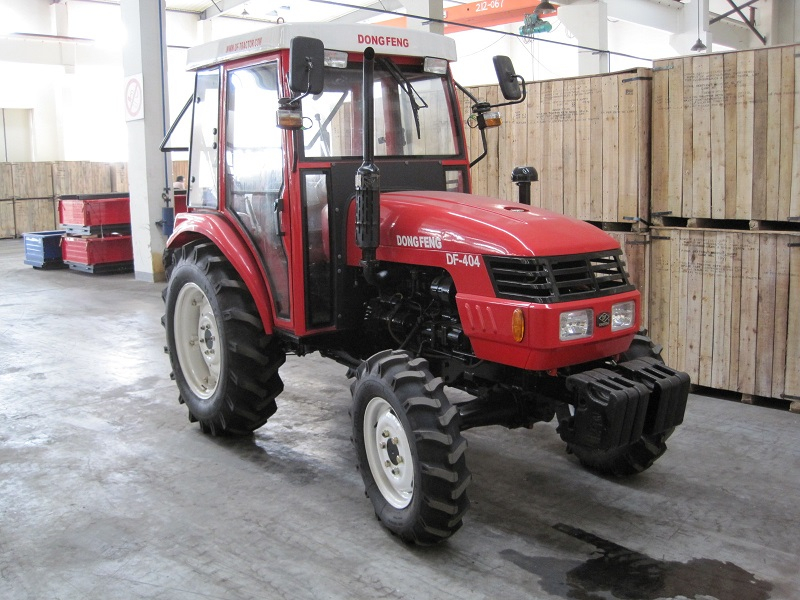

Dongfeng, DF
| Tracor Parameters | Model | DF-404 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H (mm): | 3370×1500×1620 | ||
| Height to steering wheel | |||
| Wheel Track (mm) | Front | 1200 | |
| Rear | 1100(Usually use), 1200, 1300, 1400 | ||
| Wheel Base (mm) | 1739 | ||
| Ground Clearance (mm) | Under Front Axle | 358 | |
| Under Rear Axle | 378 | ||
| Rated Traction Force (N) | In Paddy Fields | 5160 | |
| In Dry Fields | 7230 | ||
| Construction Mass (kg) | 1385 | ||
| Min. Turning Radius (m) | 2.8 | ||
| Theoretical Speed (With out creeper gear (km/h) | Forward | 1.74,2.80,4.40,5.92, 9.02,14.54,22.85,30.68 | |
| Reverse | 2.26,11.70 | ||
| Engine Specifications | Model | 490 | |
| Type | 4-cylinder, water Vertical cooled, 4stroke cycle | ||
| Rated Power (kW/hp) | 29.4 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore ×Stroke (mm) | 90×100 | ||
| Drive System | Clutch | Dual stage | |
| Gear Box | (4+1)×2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear, External, Gearing | ||
| Traveling Mechanism | Tire | Front | 6.5-16 |
| Rear | 12.4-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Shoe type | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (kg) | 5684N/580kg |
| 3-Point Suspension | Category: I | ||
| P.T.O Shaft | Rotating Speed (rpm) | 540/1000 | |
| Spline Size | 6-∮35Rectangular Spline | ||
