Dongfeng, DF

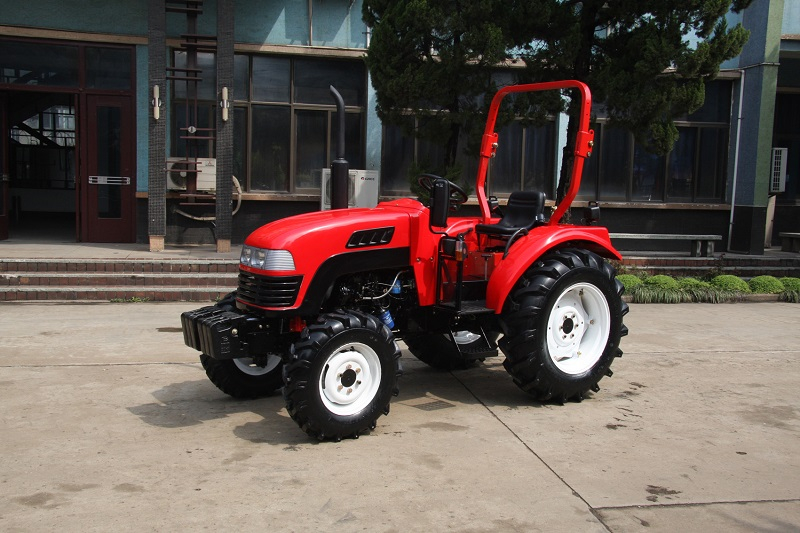

Tractor Parameters | Model | DF-404G2 | ||||
Drive Type | 4WD | |||||
Overall Dimensions L×W×H(mm): | 3453×1588×1581 (Height to steering wheel) | |||||
Wheel Track(mm) | Front | 1200 | ||||
Rear | 1200,1300,1400 | |||||
Wheel Base(mm) | 1900 | |||||
Ground Clearance(mm) | 405 | |||||
Rated Traction Force(N) | In Paddy Fields | 4970 | ||||
In Dry Fields | 7856 | |||||
Construction Mass(kg) | 1780 | |||||
Min. Turning Radius(m) | 2.5 | |||||
Theoretical Speed(km/h) | Forward | 1.41, 2.14, 3.43, 4.96, 7.33, 11.07, 17.76, 25.70 | ||||
Reverse | 1.42, 2.15, 3.45, 5.00, 7.38, 11.15, 17.89, 25.89 | |||||
Engine Specifications | Model | 4LD40B(Changchai Brand) | ||||
Type | 4-cylinder, Vertical, water cooling, 4 stroke cycle, direct-injection | |||||
Rated Power (kw/hp) | 29.4 | |||||
Rated Speed(rpm) | 2400 | |||||
Bore × Stroke(mm) | 90×100 | |||||
Total Displacement(L) | 2.543 | |||||
Drive System | Clutch | Dual-Stage | ||||
Gear Box | shuttle shift 4×2x2 | |||||
Main Drive | One Pair of Spiral Bevel Gears | |||||
Differential | Bevel Gear | |||||
Differential Lock | Jaw Lock | |||||
Final Transmissions | Spur Gear, External Gearing | |||||
Traveling Mechanism | Tyre | Front | 7.50-16 | |||
Rear | 12.4-24 | |||||
Steering Gear | Full Hydraulic Steering | |||||
Brake | Disc type | |||||
Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point | 6650 | |||
3-Point Suspension | Category: I | |||||
P.T.O. Shaft | Rotating Speed(rpm) | 540/1000 | ||||
Spline Size | 6-ф35 Rectangular Spline |
