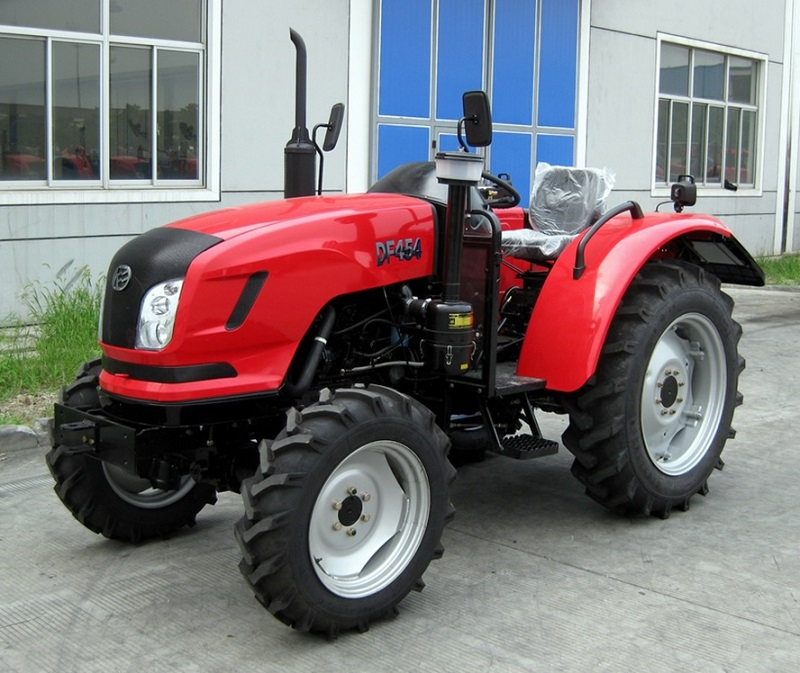

Tractor
Parameters | Model | DF-450 | DF-454 | DF-500 | DF-504 |
|
| Drive Type | 2WD | 4WD | 2WD | 4WD |
|
| Overall Dimensions L×W×H(mm): | 3780×1615×2250 |
|
| Wheel Track(mm) | Front | 1300 |
|
| Rear | 1200-1500 |
|
| Wheel Base(mm) | 1975 | 1980 | 1975 | 1980 |
|
| Ground Clearance (mm) | 450 | 370 | 450 | 370 |
|
| Rated Traction Force(N) | 9500 | 11500 | 9500 | 12500 |
|
| Construction Mass(kg) | 1900 | 2060 | 1900 | 2060 |
|
| Min. Turning Radius(m) | 3.7 | 4.2 | 3.7 | 4.2 |
|
| Speed range (km/h) | Forward | 1.6~36.5 |
|
| Reverse | 4.2~14.1 |
|
| Speed range with Shuttle shift gear (km/h) | Forward | 1.6~36.5 |
|
| Reverse | 4.2~14.1 |
|
Engine
Specifications | Model | 4G33T |
|
| Type | 4-cylinder, Vertical, in-line cylinder arrangement,
Radiator cooling, 4-stroke cycle, direct injection |
|
| Rated Power(kW) | 33.1 |
|
| Fuel consumption (g/kW/h) | ≤ 242 |
|
| Rated Speed(rpm) | 2400 |
|
| Bore ×Stroke(mm) | 95×115 |
|
| Total Displacement(L) | 3.26 |
|
Drive
System | Clutch | Dry type, Dual function |
|
| Gear Box | (3+1)×4 |
|
| Main Drive | One Pair of Spiral Bevel Gears |
|
| Differential | Bevel gears |
|
| Differential Lock | Sliding pin, foot-operated |
|
| Final Transmissions | Planetary reduction gear, slinding gear |
|
Traveling
Mechanism | Tire | Front | 6.00-16 | 8.3-20 | 6.00-16 | 8.3-20 |
|
| Rear | 12.4-28 | 12.4-28 | 12.4-28 | 12.4-28 |
|
| Steering Gear | Full hydraulic power steering |
|
| Brake | Wet disc (Multiple) |
|
Hydraulic
System | Lifting Capacity at 610 mm Behind Lift Point(kg) | 900 |
|
| 3-Point Suspension | Category: Ⅱ |
| P.T.O. Shaft | Rotating Speed(rpm) | 540/1000 |
| Spline Size | 6-ф35 Rectangular Spline |
