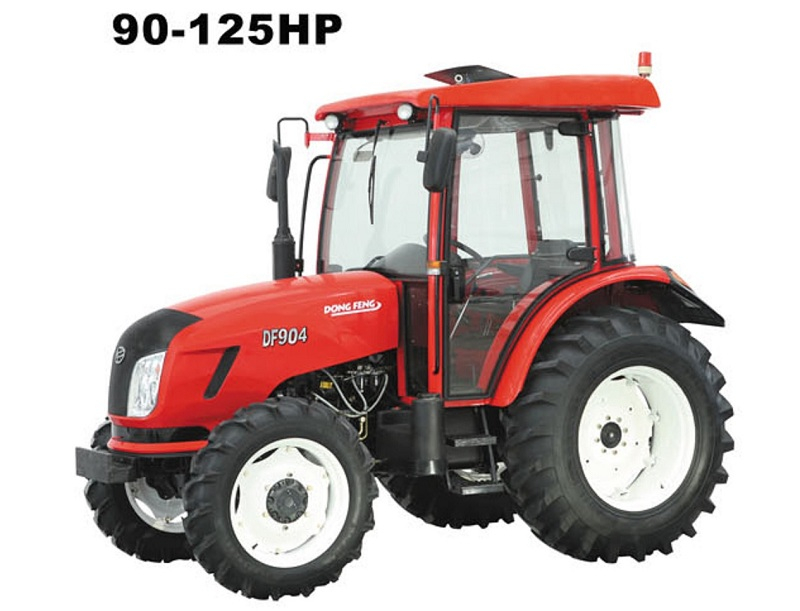

DF904 Tractor

90HP, 4WD

Quantity:



Inquire Add to Basket

Brand:
Dongfeng, DF

STANDARD FEATURES:

Side shift 12F/4R

Independent PTO 540/1,000 rpm

Single stage Clutch

Power steering

Safety start switch

Metal hood

Spring suspension seat

Cat.2, 3-pt hitch

AG tires

OPTIONAL FEATURES:

Hydraulic outlets

Air pump

Foldable ROPS

Sunshade (ROPS)

Cab

Paddy tires

Tractor Dongfeng tractor DF904 Tractor DF904

Product List

Agricultural Machinery and Tractor Implements

Combine Harvester

Crawler Tractor

Spare Parts

Walking Tractor and Power Tiller

Wheeled Tractor

Navigation

Home About Us Products News Contact Us

Contact Us

EMAIL: mavis@fotma.com, fotmasale04@gmail.com
TEL: 86-27-67845266
MOB: 86-17740672791
WHATSAPP: +86-17740672791
WECHAT: 8617740672791
ADD: No. 52 Guanggu Avenue, Hongshan, Wuhan, Hubei Province, P.R.China.

Model	DF900	DF904	DF950	DF954
ENGINE
Type	4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross. HP(kW)	90(66.2)		95(69.9)
PTO, HP(kW)	77.4(56.9)		81.7(60.1)
Rated Speed, rpm	2300		2300
Displacement, L	5.13	5.13
Fuel Tank Capacity, L	135		135
Drive Train
Transmission	Collar shift 12F/4R Constant mesh w/ partial synchronized gears

Min/Max forward speed, km/h	1.8-33		1.8-33
Steering	Power
Clutch	LUK dual-function independent clutch
Brake	Wet, multi-disk
Differential Lock	Mechanical
Drive Type	2WD	4WD	2WD	4WD
PTO
Rear PTO, rpm	Independent 540/1,000
Spline Size	6-Ø35 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump. L/min	46		46
Remote Valves (Option)	2
3-Point Hitch	CAT. 2
Control Type	Position, Draft, Mixed control
Lift Capacity 610mm behind@ lift balls, kg	2500
Dimensions
Overall Length, mm	4,255		4,255
Overall Width, mm	2,100		2,100
Overall Height(Top of Cab), mm	2,850		2,850
Wheelbase, mm	2,352		2,352
Min. Ground Clearance, mm	476	425	476	425
Min.Turning Radius, m	4	4.8	4	4.8
Weight, kg	3,155	3,380	3,155	3,380
Tires
AG, Front /Rear	7.5-20/16.9-34	13.6-24/16.9-34	7.5-20/16.9-34	13.6-24/16.9-34

Model	DF900	DF904	DF950	DF954
ENGINE
Type	4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross. HP(kW)	90(66.2)		95(69.9)
PTO, HP(kW)	77.4(56.9)		81.7(60.1)
Rated Speed, rpm	2300		2300
Displacement, L	5.13	5.13
Fuel Tank Capacity, L	135		135
Drive Train
Transmission	Collar shift 12F/4R Constant mesh w/ partial synchronized gears

Min/Max forward speed, km/h	1.8-33		1.8-33
Steering	Power
Clutch	LUK dual-function independent clutch
Brake	Wet, multi-disk
Differential Lock	Mechanical
Drive Type	2WD	4WD	2WD	4WD
PTO
Rear PTO, rpm	Independent 540/1,000
Spline Size	6-Ø35 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump. L/min	46		46
Remote Valves (Option)	2
3-Point Hitch	CAT. 2
Control Type	Position, Draft, Mixed control
Lift Capacity 610mm behind@ lift balls, kg	2500
Dimensions
Overall Length, mm	4,255		4,255
Overall Width, mm	2,100		2,100
Overall Height(Top of Cab), mm	2,850		2,850
Wheelbase, mm	2,352		2,352
Min. Ground Clearance, mm	476	425	476	425
Min.Turning Radius, m	4	4.8	4	4.8
Weight, kg	3,155	3,380	3,155	3,380
Tires
AG, Front /Rear	7.5-20/16.9-34	13.6-24/16.9-34	7.5-20/16.9-34	13.6-24/16.9-34
