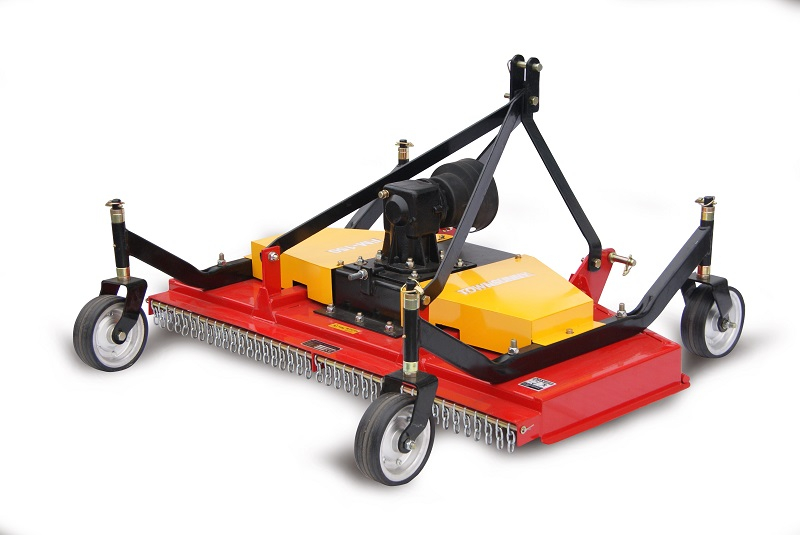

FM Finish Mower

1. 4 independent height adjustable castor wheels;
2. Uneven surfaces to provide an even finish;
3. 1-3 high strength cutting blades for a more precision finish.
Model:
Quantity:
  • FOTMA

Uses:
1. Perfect for use when presentation is essential;
2. Ideal for work around golf courses, sporting fields, parklands, camping grounds, schools, homesteads and roadsides;
3. Rear discharge for normal use or side discharge option for use in areas where the cuttings need to be thrown clear- like under orchards.

Features:
1. Rear or side discharge options;
2. 4 independent height adjustable castor wheels allow the mower to contour over uneven surfaces to provide an even finish;
3. 1-3 high strength cutting blades for a more precision finish;
4. floating top hitch to increase surface contouring.

Finishing Mower Specifications
MODEL                                                                   FM-120                                                   FM-150                                                  FM-180
CUTTING WIDTH 120cm(48") 150cm(60") 180cm(72")
DIMENSIONS(L×W×H) 1330×860×480mm 1640×995×480mm 1930×1180×480mm
CUTTING HEIGHT 25-100mm(1"-4") 25-100mm(1"-4") 25-100mm(1"-4")
WHEELS SIZES Solid Rubber 8x3" Solid Rubber 8x3" Solid Rubber 8x3"
NO.OF BLADES 3 3 3
BLADE MATERIAL Spring steel 65Mn
3-PIONT CATEGORY HITCH
PTO SPEED 540rpm 540rpm 540rpm
PTO SHAFT 6×6×900mm 6×6×900mm 6×6×900mm
MACHINE WEIGHT 195kg  215kg 265kg
POWER REQUIRED 15-30hp 25-50hp 40-70hp
