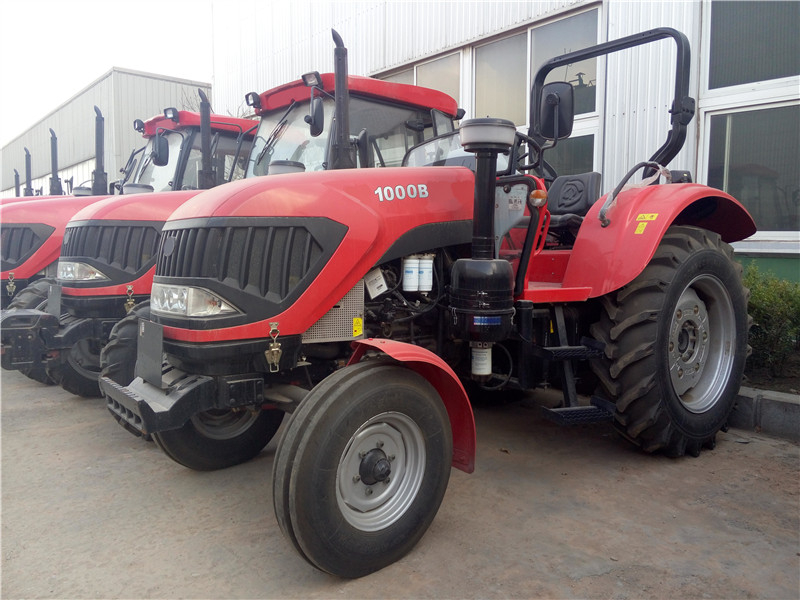

FOTMA FM1000 Tractor
Home » Products » Wheeled Tractor » Fotma Tractor » FOTMA FM1000 Tractor
EMAIL: mavis@fotma.com, fotmasale04@gmail.com
TEL:  86-27-67845266
MOB: 86-17740672791
WHATSAPP:  86-17740672791
ADD: No. 52 Guanggu Avenue, Hongshan, Wuhan, Hubei Province, P.R.China.
Share to:

FOTMA FM1000 Tractor

1. 2 pairs hydraulic output valve;
2. Luxury cabin with air conditioner and radio with USB port;
3. Dual-stage clutch;
4. Front tyre: 8.3-24;
5. Rear tyre size: 14.9-30.
Quantity:
  • FOTMA
Fotma 100HP Series Specification
Model  FM1000 FM1004
Drive type  4x2 4x4
Engine
Engine model  YTO/YUCHAI(optional)
Capacity of fuel tank(L) 150 150
Rated speed (r/min) 2300
Engine power (kw)  73.5 73.5
Lowest fuel consumption (g/kw·h) ≤242
Transmission
Clutch  Dry,Dual-stage type
PTO Speed(rpm)  540/1000 or 760/1000(optional)
Gear shift  8F+4R/16F+8R(optional)/8F+8R(optional)
Hydraulic system
Hydraulic output valve  2-Way (optional)
Three point linkage
Category of 3-point link  Category II
Lifting capacity(at point
of 610mm)KN
>15 >16

Technical parameter
Dimension LxWxH mm 4593x2050x2810
Wheel base(mm) 2362 2195
Track base(mm) front wheel 1485 1610
Track base(mm) rear wheel 1620-2020 (usual 1620)
The smallest clearance(mm) 476 379
Front tyre  6.5-20 / 7.5-16(optional) 11.2-24
Rear tyre  16.9-34/18.4-30(Optional)
