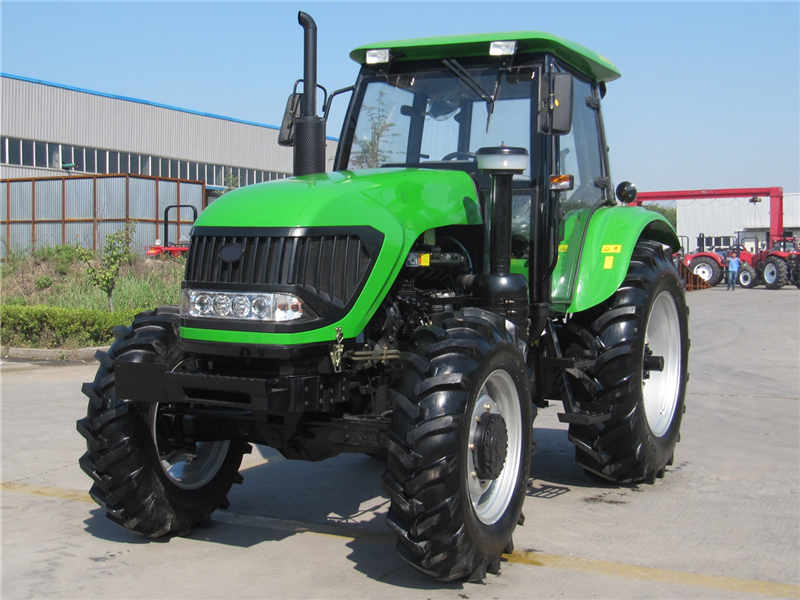

FOTMA FM1104 Tractor

1. YTO brand 6 cylinder engine;
2. Imported JpV clutch;
3. OECD approved luxury cabin with air-condition and radio;
4. 8F/8R transmission;
5. Heavy duty front and rear axle;
6. Rear CAT-II 3-point hitch;
7. Two pair hydraulic output valve.
Availability:
Quantity:
  • FOTMA

Tractor Main Features and Advantages:
1.Equipped famous brand engine showing advanced capacity, low fuel consumption and high economic efficiency.
2. Streamlined appearance design, beautiful and generous.
3.Transmission Case adopt meshed shift and add the gearbox interlock device makes the operation more smoothly, reliable and easier.
4. Double action clutch with disc spring, perform steadily and easy to operate.
5. Fully hydraulic steering system greatly reduced driver's work strength.
6. Wet disc brake device, reliable brake performance.
7. Separate injection of hydraulic oil, reliable to operate.
8. The lifter with force and position adjustment, with reliable lift.
9. Tractor PTO:
PTO in Double speed : 540/1000, 760/1000, 540/760r/min Optional, For high working efficiency.
PTO shaft of 6 or 8 spline Optional, adaptable for agricultural equipment of all over the world.
10. Full series light, ROPS,Sunshade/Canopy, Fan/Heater/Air-conditioned cabin are all available, for more comfortable driving environment.

Model FM1100 FM1104
Drive type 4x2 4x4

Engine
Engine model Yuchai or YTO Diesel Engine
Capacity of fuel tank(L) 165 165
Rated speed (r/min) 2300 2300
Engine power at rated speed 81 81

Transmission
Clutch Dry,Dual-stage type
PTO Speed (rpm) 540/1000 or 760/1000
Gear shift 8F+4R/16F+8R(optional)/8F+8R(optional)

Hydraulic system
Hydraulic output valve 2-Way (optional)

Three point linkage
Category of 3-point link Category II
Lifting force (at point of 610mm)KN >17 >18

Technical parameter
Dimension (LxWxH) (mm) 4620x2100x2850
Wheel base(mm) 2362 2195
Track base(mm) front wheel 1485 1610
Track base(mm) rear wheel 1620-2020 (usual 1620)
The smallest clearance(mm) 476 379
Front tyre 6.5-20 11.2-24
Rear tyre 16.9-34

Optional Configuration
Common cabin; Heater inside cabin; Luxury cabin with A/C;ROPS ; Canopy;
Hydraulic output valve (2-way); Front ballast; Rear ballast; Swing draw bar;
16F+8R creeper gear shift; Paddy tyres (Front : 11.2-24, Rear:16.9-34)

Loading capacity
3 units/40HC container in Nude packing
