| Quantity: | |
|---|---|

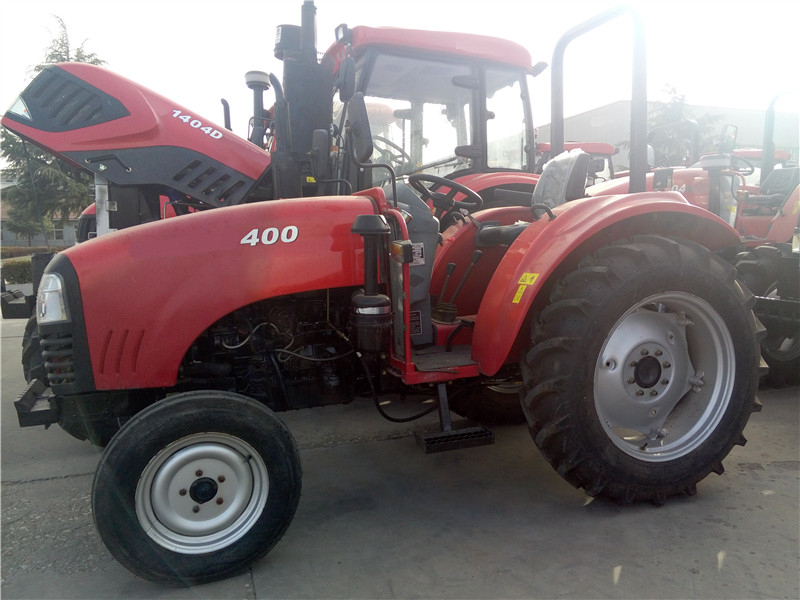

FOTMA
| Without cab & canopy | |||
| Item | FM400 | FM404 | |
| Complete Parameter | |||
| Drive Form | 4×2 | 4×4 | |
| Rated traction force (KN) | 7.8 | 12 | |
| Main output power of P.T.O. (KW) | ≥26.46 | ||
| Constructional weight (Kg) | 1500 | 1760 | |
| Wheel base (mm) | 1960 | 1950 | |
| Wheel Tread (mm) | Front wheel | 1125 | 1285 |
| (adjustable) | |||
| Rear wheel | 1205(adjustable) | ||
| Minimum turning radius | With one-side braking | 3.2±0.2 | 3.3±0.2 |
| (m) | Without one-side braking | 3.5±0.2 | 3.8±0.2 |
| Figure size (L×W×H) (m) | 3315×1490 | 3360×1340×2100 | |
| ×2105 | |||
| minimum land clearance (mm) | 485 | 365 | |
| Front tyre | 6.0-16 | 7.5-16 | |
| Rear tyre | 11.2-28 | ||
| Engine | |||
| Model | JD490 | ||
| Cylinder number | 4 | ||
| Bore × Stroke (mm) | Φ90×105 | ||
| Rated revolution (r/min) | 2300 | ||
| Rated power (KW) | 29.4 | ||
| Max Torque (N.m) | ≥165 | ||
| Revolution When Max Torque (r/min) | ≤1725 | ||
| Fuel consumption (g/Kw.h) | ≤245 | ||
| Oil Consumption (g/kw.h) | ≤2.04 | ||
| Transmission System | |||
| Clutch | Single-stage, Dry type. | ||
| Transmission Box | Straight teeth (4+1)*2 plane combined | ||
| Working Devices | |||
| Lifter Tilling Depth Control | Position adjustable | ||
| Max. Lifting Capacity (KN) | ≥6.62 | ||
| P.T.O type | Postposition, not standalone. | ||
| Speed of P.T.O. (r/min) | 540/1000 or 750/1000 or 540/750 | ||
| Suspension Type | Three-Point, I category. | ||
| Note: The whole size and weight will be different slightly because of the devices vary. | |||
| Without cab & canopy | |||
| Item | FM400 | FM404 | |
| Complete Parameter | |||
| Drive Form | 4×2 | 4×4 | |
| Rated traction force (KN) | 7.8 | 12 | |
| Main output power of P.T.O. (KW) | ≥26.46 | ||
| Constructional weight (Kg) | 1500 | 1760 | |
| Wheel base (mm) | 1960 | 1950 | |
| Wheel Tread (mm) | Front wheel | 1125 | 1285 |
| (adjustable) | |||
| Rear wheel | 1205(adjustable) | ||
| Minimum turning radius | With one-side braking | 3.2±0.2 | 3.3±0.2 |
| (m) | Without one-side braking | 3.5±0.2 | 3.8±0.2 |
| Figure size (L×W×H) (m) | 3315×1490 | 3360×1340×2100 | |
| ×2105 | |||
| minimum land clearance (mm) | 485 | 365 | |
| Front tyre | 6.0-16 | 7.5-16 | |
| Rear tyre | 11.2-28 | ||
| Engine | |||
| Model | JD490 | ||
| Cylinder number | 4 | ||
| Bore × Stroke (mm) | Φ90×105 | ||
| Rated revolution (r/min) | 2300 | ||
| Rated power (KW) | 29.4 | ||
| Max Torque (N.m) | ≥165 | ||
| Revolution When Max Torque (r/min) | ≤1725 | ||
| Fuel consumption (g/Kw.h) | ≤245 | ||
| Oil Consumption (g/kw.h) | ≤2.04 | ||
| Transmission System | |||
| Clutch | Single-stage, Dry type. | ||
| Transmission Box | Straight teeth (4+1)*2 plane combined | ||
| Working Devices | |||
| Lifter Tilling Depth Control | Position adjustable | ||
| Max. Lifting Capacity (KN) | ≥6.62 | ||
| P.T.O type | Postposition, not standalone. | ||
| Speed of P.T.O. (r/min) | 540/1000 or 750/1000 or 540/750 | ||
| Suspension Type | Three-Point, I category. | ||
| Note: The whole size and weight will be different slightly because of the devices vary. | |||
