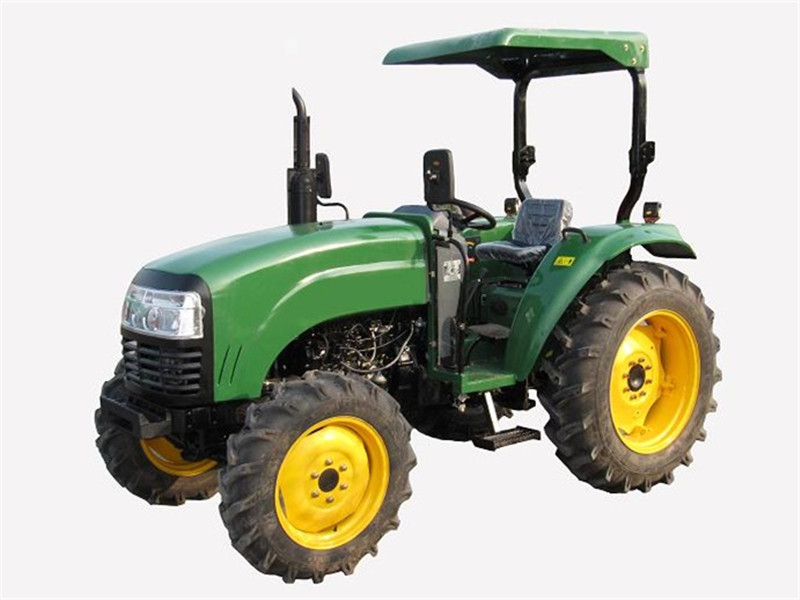

FOTMA FM504 Tractor

1. Famous Xinchai brand 4 cylinder diesel engine;
2. Low fuel consumption and high torque output;
3. Imported JpV brand dual-stage clutch;
4. 8F/8R shuttle transmission, easy to operate;
5. Rear category I 3 point linkage;
6. OECD approved ROPS at option.
Availability:
Quantity:
  • FOTMA

FM504 & FM554
Model  FM504 FM554
Drive type 4x4 4x4
Engine
Type of engine Xinchai 4-Cylinder( Model: A498BT)
Capacity of fuel tank(L)  38L
Engine power at rated speed(kw) 36.8 40.5
PTO power(kw) 33.1 36.5
Rated speed (r/min) 2400
Transmission
Clutch  dry,dual-stage type
PTO speed  540/760rpm
Gear shift  8F+4R/8F+8R(Optional)
 Hydraulic system
Hydraulic output valve  2-Way (optional)
Three point linkage
Category of 3-point link  rear, category  I
Lifting capacity( kg) 846

Technical parameter
Min.Turning radius (m)
(without single side brake)
4.1
Overal size(LxWxH)mm  3513x1750x2130( without cabin or ROPs)
3513x1750x2500( with cabin)
Wheel base(mm)  2040
The smallest clearance(mm)  325 325
Front tire  8.3-20
Rear tire  12.4-28/14.9-24(optional)
