FOTMA

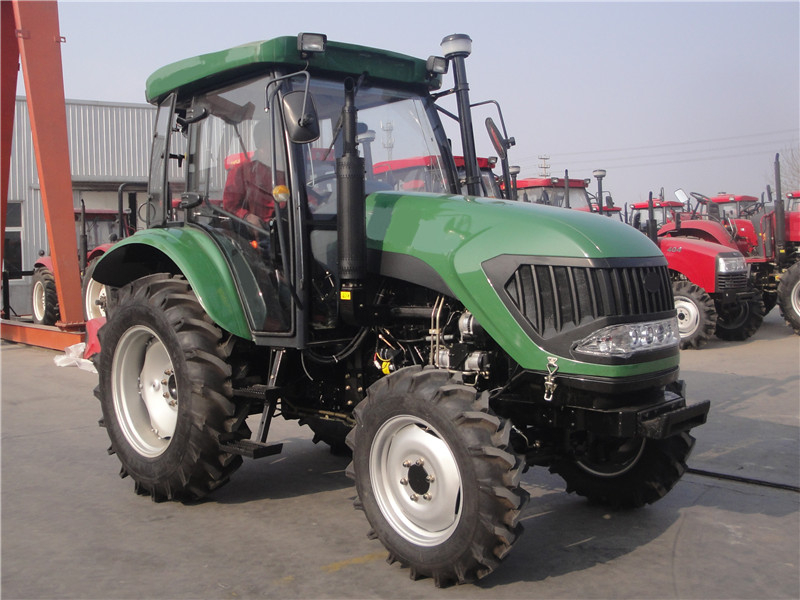

FM40-55 SERIES SPECIFICATION | ||||
Model | FM400 | FM404 | FM550 | FM554 |
Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
Engine | ||||
Type of engine | Xinchai 4-Cylinder | |||
Capacity of fuel tank(L) | 38L | |||
Engine power at rated speed | 29.4 | 40.5 | ||
Rated speed (r/min) | 2400 | |||
Transmission | ||||
Clutch | dry,dual-stage type | |||
PTO speed | 540/1000rpm or 540/760rpm | |||
Gear shift | 8F+4R/8F+8R(Optional) | |||
Hydraulic system | ||||
Hydraulic output valve | 2-Way (optional) | |||
Three point linkage | ||||
Category of 3-point link | rear, category I | |||
Lifting force(at point of 610mm)KN | 11 | 12 | ||
Technical parameter | ||||
Overal size(LxWxH)mm | 3513x1750x2130 | |||
Wheel base(mm) | 1880 | 1924 | 1998 | 2040 |
The smallest clearance(mm) | 400 | 325 | 400 | 325 |
Front tire | 6.0-16 | 8.3-20 | 6.0-16 | 8.3-20 |
Rear tire | 12.4-28/14.9-24(optional) |
