FOTMA

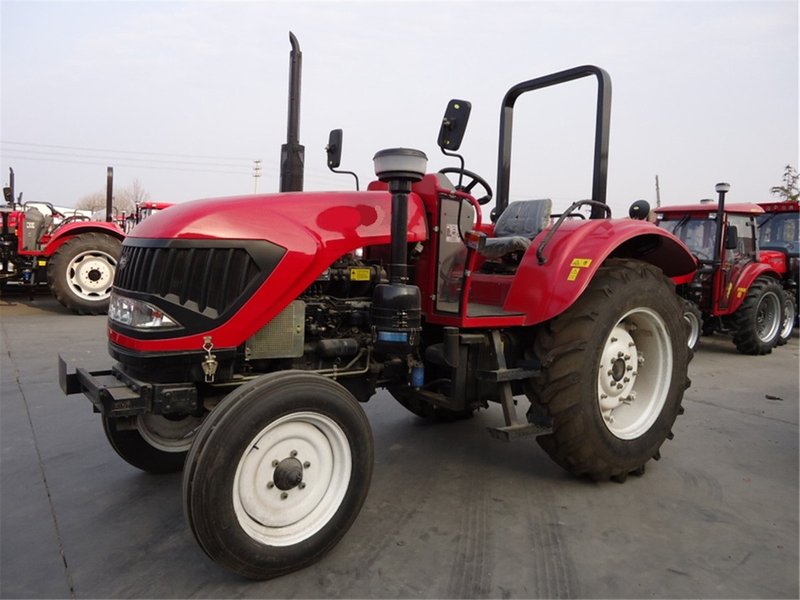

FM70B SERIES SPECIFICATION | ||||
Model | FM700B | FM704B | FM750B | FM754B |
Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
Engine | ||||
Engine | YTO or Yuchai 4 cylinder engine | |||
Capacity of fuel tank(L) | 78 | |||
Rated speed (r/min) | 2200 | |||
Engine power | 51.5 | 51.5 | 55.2 | 55.2 |
Lowest fuel consumption (g/kw·h) | ≤242 | |||
Transmission | ||||
Clutch | Dry,Dual-stage type | |||
PTO Speed(rpm) | 760 | |||
Gearshift | 8F+2R | |||
Hydraulic system | ||||
Hydraulic output valve | 2-Way ,(optional) | |||
Three point linkage | ||||
Category of 3-point link | Rear, Category II | |||
Lifting capacity(at point of 610mm)KN | 12.5 | 12.5 | 13 | 13 |
| ||||
Technical parameter | ||||
Dimension LxWxH mm | 4010x1929x2568 | |||
Wheel base(mm) | 2188 | 2236 | 2188 | 2236 |
Track base(mm) front wheel | 1500 | 1450 | 1500 | 1450 |
Track base(mm) rear wheel | 1530 | 1530 | 1530 | 1530 |
The smallest clearance(mm) | 430 | 340 | 430 | 340 |
Front tyre | 6.5-20 | 8.3-24 | 6.5-20 | 8.3-24 |
Rear tyre | 14.9-30 |
