FOTMA

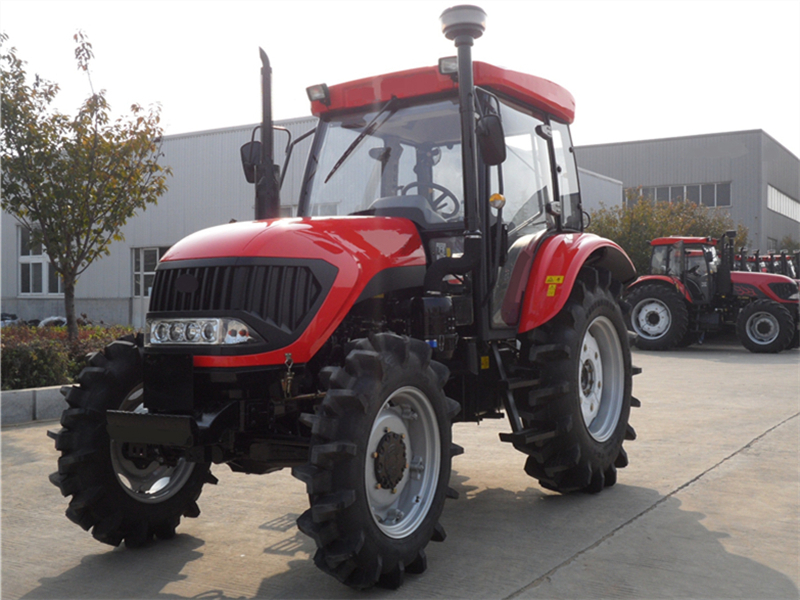

FM80 SERIES SPECIFICATION | ||||
Model | FM800 | FM804 | FM850 | FM854 |
Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
Engine | ||||
Engine model | YTO/YUCHAI(optional) | |||
Capacity of fuel tank(L) | 150 | |||
Rated speed (r/min) | 2300 | |||
Engine power | 58.8 | 58.8 | 62.5 | 62.5 |
Lowest fuel consumption (g/kw·h) | ≤242 | |||
Transmission | ||||
Clutch | Dry,dual-stage type | |||
PTO Speed(rpm) | 540/1000 or 760/1000 | |||
Gearshift | 8F+4R /16F+8R(optional)/8F+8R(optional) | |||
Hydraulic system | ||||
Hydraulic output valve | 2-Way(optional) | |||
Three point linkage | ||||
Category of 3-point link | Category II | |||
Lifting capacity(at point of 610mm)KN | >15 | >16 | >15 | >16 |
Technical parameter | ||||
Dimension LxWxH mm | 4593x2050x2810 | |||
Wheel base(mm) | 2362 | 2195 | 2362 | 2195 |
Track base(mm) front wheel | 1485 | 1610 | 1485 | 1610 |
Track base(mm) rear wheel | 1620-2020(usual 1620) | |||
The smallest clearance(mm) | 476 | 379 | 476 | 379 |
Front tyre | 6.5-20/7.5-16 | 11.2-24 | 6.5-20/7.5-16 | 11.2-24 |
Rear tyre | 16.9-34/18.4-30(optional) |
