FOTMA

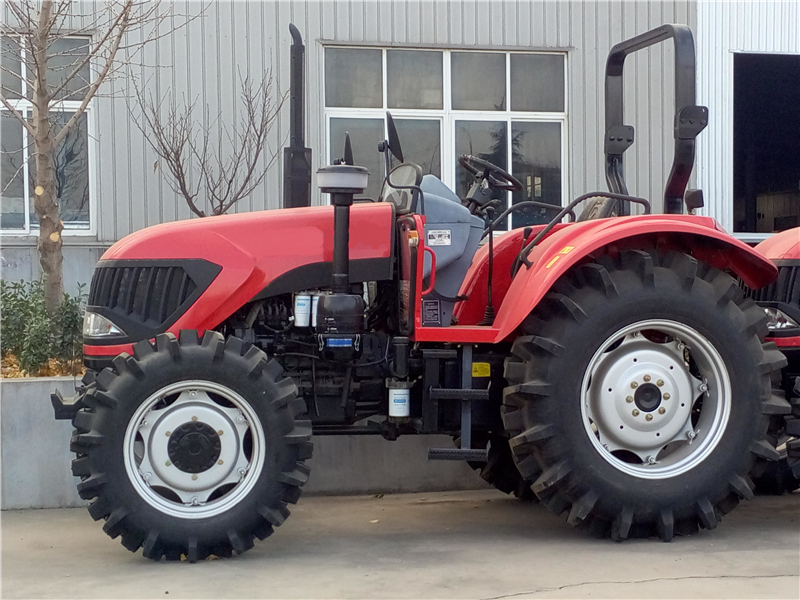

| FM80B SERIES SPECIFICATION | |||
| Model | FM800B | FM804B | FM850B |
| Drive type | 4x2 | 4x4 | 4x2 |
| Engine | |||
| Engine model | 4 - Cylinder | ||
| Capacity of fuel tank(L) | 78 | ||
| Rated speed (r/min) | 2200 | ||
| Engine power | 58.8 | 58.8 | 62.5 |
| Lowest fuel consumption (g/kw·h) | ≤242 | ||
| Transmission | |||
| Clutch | Dry,dual-stage type | ||
| PTO Speed(rpm) | 760 | ||
| Gearshift | 8F+2R | ||
| Hydraulic system | |||
| Hydraulic output valve | 2-Way (optional) | ||
| Three point linkage | |||
| Category of 3-point link | Rear , Category II | ||
| Lifting capacity(at point of 610mm)KN | 13.5 | ||
| Technical parameter | |||
| Dimension LxWxH mm | 4010x1929x2568 | ||
| Wheel base(mm) | 2188 | 2236 | 2188 |
| Track base(mm) front wheel | 1500 | 1450 | 1500 |
| Track base(mm) rear wheel | 1530 | ||
| The smallest clearance(mm) | 430 | 340 | 430 |
| Front tyre | 6.5-20 | 8.3-24 | 6.5-20 |
| Rear tyre | 14.9-30 | ||
| FM80B SERIES SPECIFICATION | |||
| Model | FM800B | FM804B | FM850B |
| Drive type | 4x2 | 4x4 | 4x2 |
| Engine | |||
| Engine model | 4 - Cylinder | ||
| Capacity of fuel tank(L) | 78 | ||
| Rated speed (r/min) | 2200 | ||
| Engine power | 58.8 | 58.8 | 62.5 |
| Lowest fuel consumption (g/kw·h) | ≤242 | ||
| Transmission | |||
| Clutch | Dry,dual-stage type | ||
| PTO Speed(rpm) | 760 | ||
| Gearshift | 8F+2R | ||
| Hydraulic system | |||
| Hydraulic output valve | 2-Way (optional) | ||
| Three point linkage | |||
| Category of 3-point link | Rear , Category II | ||
| Lifting capacity(at point of 610mm)KN | 13.5 | ||
| Technical parameter | |||
| Dimension LxWxH mm | 4010x1929x2568 | ||
| Wheel base(mm) | 2188 | 2236 | 2188 |
| Track base(mm) front wheel | 1500 | 1450 | 1500 |
| Track base(mm) rear wheel | 1530 | ||
| The smallest clearance(mm) | 430 | 340 | 430 |
| Front tyre | 6.5-20 | 8.3-24 | 6.5-20 |
| Rear tyre | 14.9-30 | ||
