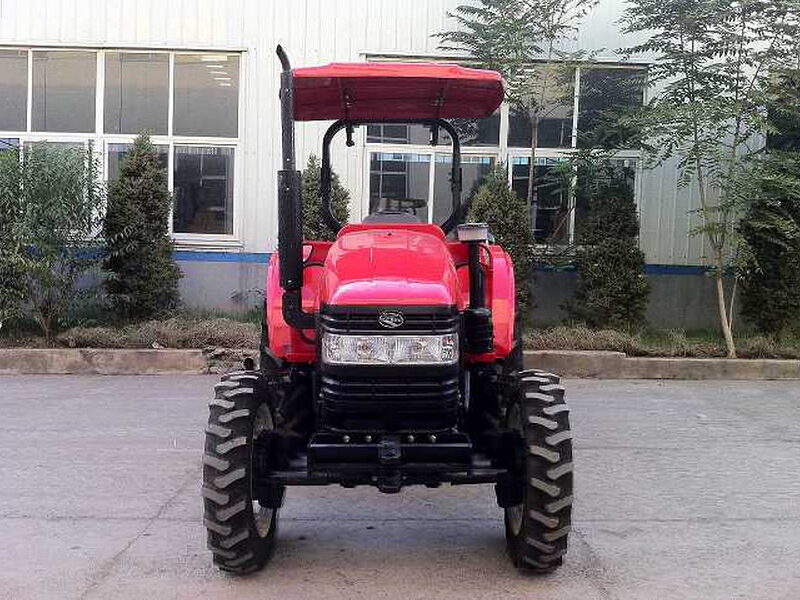

Fotma FM604 Tractor

Availability:
Quantity:
  • FOTMA

Main Features:
1. Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
3. Gearbox using 4 × 3(1 +1)  engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion;
10. Control levers can be mounted at side as optional, more convenient and comfortable.

Tractor Model FM404 FM454 FM504 FM554 FM604 FM654 FM704
Drive Type 4*4
Overall Dimension  L*W*H(mm) 3770*1620*2130 3875*1635*2145 3925*1728*2170
Wheel base(mm) 1990 2010 2010
Front wheel tread(mm) 1265
Rear wheel tread(mm) 1200--1500 (Common 1300)
Min. ground clearance(mm) 315 315 330 330 375
Min.  steering radius Unilateral brake(m) 3.8
Not unilateral brake(m) 4.3
Min. operating weight (KG) 2080 2300 2565
Gearbox  gears number 12F+12R
Speed Forward(Kw/h) 2.46-34.02 2.33-31.04
Reverse(Kw/h) 2.15-29.82 2.04-27.21
Engine Model C490BT-8 A495BT A498BT-6A A4K41T55-002 A4K41T60 A4K43T65A A4K43T70A
Rated power (Kw) 29.4 33.1 36.8 40.4 44 48 51.5
Rated speed (r/min) 2400 2400 2400 2400 2300 2300 2300
Tires spec. Front tires 8.3-20 8.3-20 8.3-24 8.3-24
Rear tires 12.4-28 13.6-28 14.9-28
Steering Type Full hydraulic  front wheels steering
Max. lifting force( KN ) 7 7.5 8.28 9.1 9.9 11.8 13.5
PTO Type Rear-mounted, Semi-independent type
Speed (r/min) 540/760 or 540/1000
Power(Kw) ≥26.3 ≥28.1 ≥31.3 ≥34.3 ≥37.4 ≥40.8 ≥43.8
Control type of ploughing depth   Height control & flotation control
Max. traction force (KN) 9.7 10.2/10.5 11.7 12.5 12.5 13 13
Front / rear Ballast (KG) 104/220 104/300

Notice: As our products will be improved continuously , all above parameters are subject to modification without notice.
