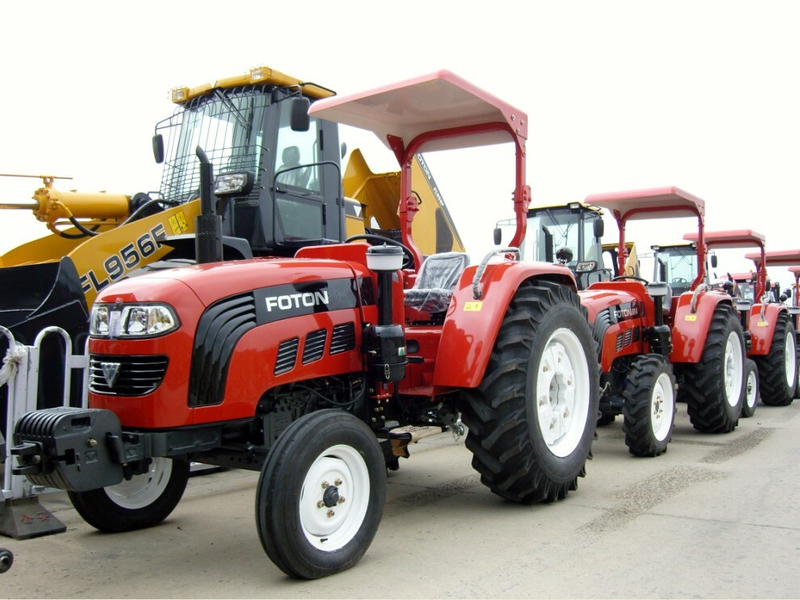

FOTON
Technical parameters | |
Drive type | 4*2 |
Overall dimension(L * W * H) | 4200*1910*2760 |
Wheelbase (mm) | 2188 |
Track(front/rear) | 1400-1830/1430-1830 |
Track(front/rear) regulating method | Step/Step |
Min.Ground clearance(mm) | 430 |
Min.operating weight (with cab)(kg) | 3115 |
Min.operating weight (without cab)(kg) | 2900 |
Counterweight (max)(front/rear) | 240/540 |
Gears(forward/reverse/creeper) | 8+2/16+4 |
Theoretical speed of each gear (forward/reverse) | 3.06-31.47/3.61-37.2;0.69-8.75/0.78-3.47 |
Engine | |
Brand | Lovol Power |
Engine type | In-line, four-stroke |
Intake mode | Supercharged |
Cylinders Number | 4 |
Bore | 100 |
Stroke | 127 |
Displacement(L) | 4 |
Engine rated power kW@rpm | 48 |
Rated speed | 2200 |
Type of air cleaner | Dry or wet type |
Type of cooling system | Forced water-cooled |
Max. Torque@ revolving speed (rpm) | 270@1400~1600 |
Specific fuel consumption at rated conditions (g/kW.h) | ≤248 |
Fuel tank capacity (L) | 78 |
Steering brake system | |
Type of steering system | Hydraulic |
Type of steering gear | Cycloid orbitrol steering gear |
Type of braking system | Dry type or disc type |
Transmission system | |
Clutch type | Dry/double action |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve |
Type of central transmission | Spiral bevel gear type |
Final transmission mode (front/rear) | External gearing or built-in type |
Walking system | |
Frame type | Frameless |
Tire Model (front/rear) | 6.5-20/14.9-30 |
Working system | |
Type of hydraulic suspension system | Open-center, semi-separated or separated type |
Type of linkage | Three point rear linkage |
Linkage classes | ClassⅠ/Ⅱ |
Lift capacity(610mm point))(kN) | Ordinary Riser≥15;Forced Riser≥20 |
Regulating mode | Semi-separated lifter: force and position combination control; separated lifter:depth control and floating control |
Type of PTO shaft | Rear semi-detached/rear detached type |
The number of PTO shaft splines | 6 splines/8splines |
Outer diameter of PTO shaft spline | φ35/φ38 |
PTO shaft speed | 540/1000 or 540/760 |
Hydraulic system | |
Hydraulic output flow (L/min) | 30 |
