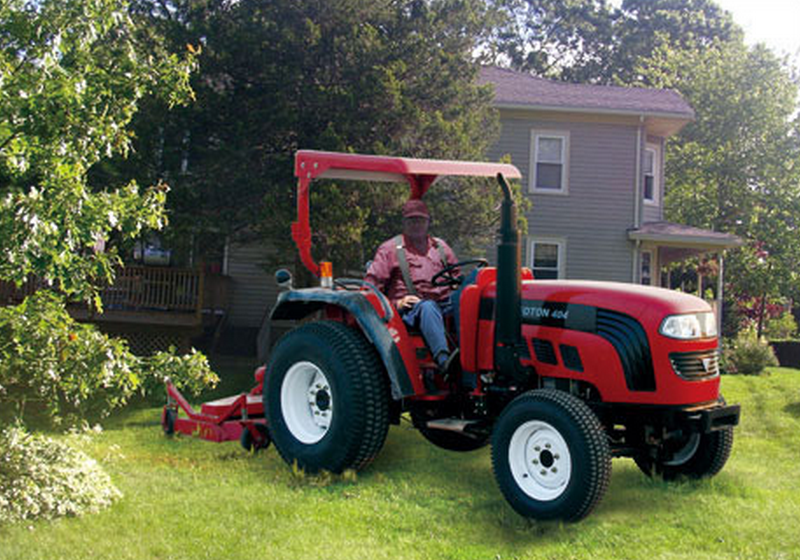

FOTON
Technical parameters | |
Drive type | 4*2 |
Overall dimension(L * W * H) | 3780*1650*(2105/2495) |
Wheelbase (mm) | 1900 |
Track(front/rear) | 1250/1150-1450 |
Track(front/rear) regulating method | Step/stepless |
Min.Ground clearance(mm) | 360 |
Min.operating weight (with cab)(kg) | 1880 |
Min.operating weight (without cab)(kg) | 1700 |
Counterweight (max)(front/rear) | 72.108/300.360 |
Gears(forward/reverse/creeper) | 8+4/8+8/16+8/12+12 |
Theoretical speed of each gear(forward/reverse) | 2.32-30.49/3.45-10.61;2.32-30.49/2.04-26.73;0.38-5/0.57-1.72;0.37-30.49/0.57-10.61;2.16-28.69/1.88-25.15 |
Engine | |
Brand | JiangDong, Xinchai, Quanchai |
Engine type | 4-cylinder |
Intake mode | Natural intake |
Number of cylinders | 3 |
Bore | 100 |
Stroke | 117 |
Displacement(L) | 2.545(490BT)2.672(QC490) |
Engine rated power kW@rpm | 25.7 |
Rated speed | 2200 |
Type of air cleaner | Dry or wet type |
Type of cooling system | Forced water-cooled |
Max. Torque@ revolving speed (rpm) | 122@1540~1650 |
Specific fuel consumption rate at rated conditions (g/kW.h) | ≤248 |
Fuel tank capacity (L) | 38 |
Steering brake system | |
Type of steering system | Hydraulic/mechanical |
Type of steering gear | Cycloid orbitrol steering gear |
Type of braking system | Disc type |
Transmission system | |
Clutch type | Single-action/double action |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve |
Type of central transmission | Spiral bevel gear type |
Final transmission mode (front/rear) | Planetary gear type |
Walking system | |
Frame type | Frameless |
Tire Model (front/rear) | 5.5-16/11.2-28 |
Working device | |
Type of hydraulic suspension system | Open-center, semi-separated type |
Type of linkage | Three point rear linkage |
Linkage classes | Class I |
Lift capacity(610mm point))kN | 6.4 |
Regulating mode | Force or position independent control |
Type of PTO shaft | Rear semi-detached type |
The number of PTO shaft splines | 6 splines/8splines |
Outer diameter of PTO shaft spline | φ35/φ38 |
PTO shaft speed | 540/760 or 540/1000 or 760/1000 |
Hydraulic system | |
Hydraulic output flow (L/min) | 23/33 |
