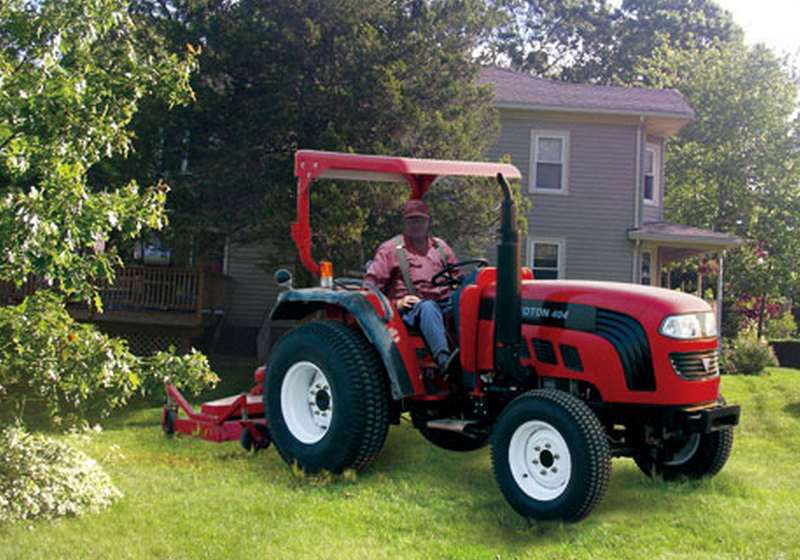

FOTON
Technical parameters | |
Drive type | 4*2 |
Overall dimension(L * W * H) | 3980*1650*(2130/2520) |
Wheelbase (mm) | 1966 |
Track(front/rear) | 1150-1450/1200-1500 |
Track(front/rear) regulating method | Step/stepless |
Min.Ground clearance(mm) | 400 |
Min.operating weight (with cab)(kg) | 2210 |
Min.operating weight (without cab)(kg) | 2030 |
Counterweight (max)(front/rear) | 108.144/300.360 |
Gears(forward/reverse/creeper) | 8+4/8+8/16+8/12+12 |
Theoretical speed of each gear(forward/reverse) | 2.65-34.78/3.94-12.1;2.65-34.78/2.33-30.49;0.43-34.78/0.65-12.10;2.46-32.73/2.15-28.69 |
Engine | |
Brand | Xinchai, Quanchai |
Engine type | 4-cylinder |
Intake mode | Natural intake |
Number of cylinders | 4 |
Bore | 98 |
Stroke | 105 |
Displacement(L) | 3.168 |
Engine rated power kW@rpm | 36.8 |
Rated speed | 2400 |
Type of air cleaner | Dry or wet type |
Type of cooling system | Forced water-cooled |
Max. Torque@ revolving speed (rpm) | 186@1600~1800 |
Specific fuel consumption rate at rated conditions (g/kW.h) | ≤248 |
Fuel tank capacity (L) | 38/52 |
Steering brake system | |
Type of steering system | Hydraulic/mechanical |
Type of steering gear | Cycloid orbitrol steering gear |
Type of braking system | Disc type |
Transmission system | |
Clutch type | Single-action/double action |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve |
Type of central transmission | Spiral bevel gear type |
Final transmission mode (front/rear) | Planetary gear type |
Walking system | |
Frame type | Frameless |
Tire Model (front/rear) | 6.0-16/12.4-28 |
Working device | |
Type of hydraulic suspension system | Open-center, semi-separated type |
Type of linkage | Three point rear linkage |
Linkage classes | Class II |
Lift capacity(610mm point))kN | 9.1 |
Regulating mode | Force or position independent control |
Type of PTO shaft | Rear semi-detached type |
The number of PTO shaft splines | 6 splines/8splines |
Outer diameter of PTO shaft spline | φ35/φ38 |
PTO shaft speed | 540/760 or 540/1000 or 760/1000 |
Hydraulic system | |
Hydraulic output flow (L/min) | 23/33 |
