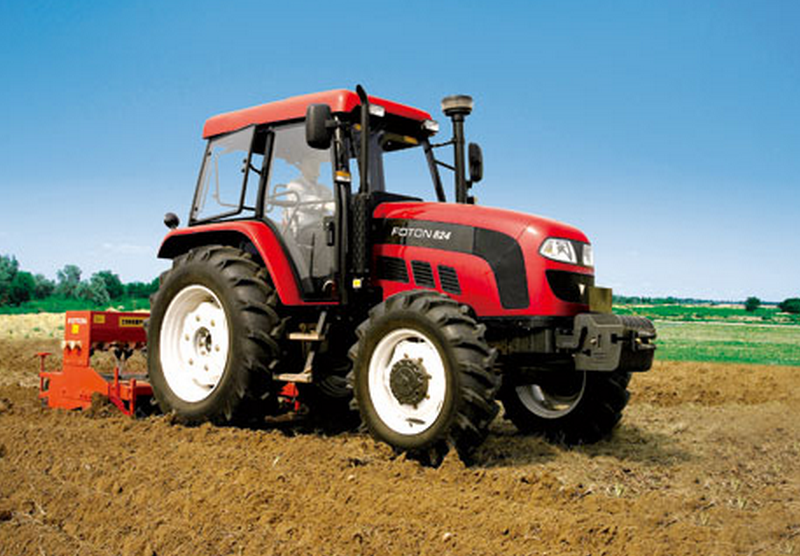

FOTON
Technical parameters | |
Drive type | 4*4 |
Overall dimension(L * W * H) | 4530*2050*2810 |
Wheelbase (mm) | 2195 |
Track(front/rear) | 1610~1950/1608~1996 |
Track(front/rear) regulating method | Step/stepless |
Min.Ground clearance(mm) | 405 |
Min.operating weight (without cab)(kg) | 4155 |
Min.operating weight (without cab)(kg) | 3855 |
Counterweight (max) (front/rear) | 440/480 |
Gears(forward/reverse/creeper) | 8+4/16+8 shuttle type /16+8 creeping/8+8 |
Theoretical speed of each gear(forward/reverse) | 0.4-33.3/0.6-10.3;1.5-32.2/2.3-32.2;2.2-33.3/3.0-10.3;2.5-39.31/2.62-41.31 |
Engine | |
Brand | Lovol |
Engine type | In-line, four-stroke |
Intake mode | Supercharged |
Cylinder number | 4 |
Bore | 100 |
Stroke | 127 |
Displacement(L) | 4 |
Engine rated power kW@rpm | 66 |
Rated speed | 2200 |
Air cleaner type | Dry or wet type |
Type of cooling system | Water-cooled (or water intercooling or air intercooling) |
Max. Torque@ revolving speed (rpm) | 350@1500~1700 |
Specific fuel consumption at rated conditions (g/kW.h) | ≤260 |
Fuel tank capacity (L) | 145 |
Steering brake system | |
Type of steering system | Hydraulic steering |
Type of steering gear | Cycloid orbitrol steering gear |
Type of braking system | Wet type, disc type, static hydraulic control |
Transmission system | |
Clutch type | dry type,double action |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve/synchro |
Type of central transmission | Spiral bevel gear type |
Final transmission mode(front/rear) | Single-stage spur gear type, outboard on both sides of the rear axle casing |
Walking system | |
Frame type | Frameless |
Tire Model (front/rear) | 12.4-24/(16.9-34/18.4-30/13.6-38) |
Working device | |
Type of hydraulic suspension system | Open-center, semi-separated or separated type |
Type of linkage | Three point rear linkage |
Linkage classes | Class II |
Lift capacity(610mm point))kN | Ordinary Riser≥15;Forced Riser≥20 |
Regulating mode | Semi-separated lifter: force and position combination control; Separated raiser:depth control and floating control |
Type of PTO shaft | Rear separated type |
The number of PTO shaft splines | 6 splines/8splines |
Outer diameter of PTO shaft spline | φ35/φ38 |
PTO shaft speed | 540/1000(760/1000,540/760,760/850) |
Hydraulic system | |
Hydraulic output flow (L/min) | 37/47 |
