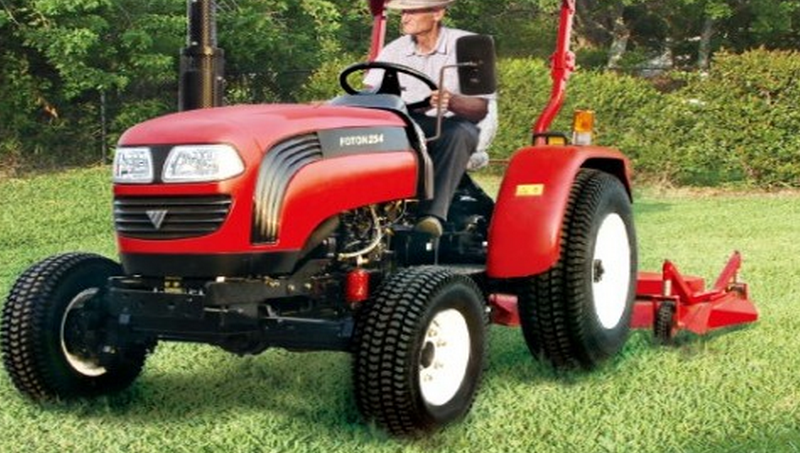

FOTON
Technical parameters | |
Drive type | 4*2 |
Overall dimension(L * W * H) | 3210*1475*1860 |
Wheelbase (mm) | 1616 |
Track(front/rear) | 1100-1300/960-1460 |
Track(front/rear) regulating method | Step/stepless |
Min.Ground clearance(mm) | 335 |
Min.operating weight (kg) | 1280 |
Counterweight (max)(front/rear) | 54/124 |
Gears(forward/reverse/creeper) | 8+2 |
Theoretical speed of each gear(forward/reverse) | 1.72-26.02/2.25-10.39;1.72-26.02/1.61-24.24;0.37-26.02/0.5-10.78 |
Engine | |
Brand | Laidong, Jiangdong, lijia |
Engine type | In-line, four-stroke |
Intake mode | Natural intake |
Number of cylinders | 3 |
Bore | 70 |
Stroke | 105 |
Displacement(L) | 1.53 |
Engine rated power kW@rpm | 14.7 |
Rated speed | 2350 |
Air cleaner type | Dry or wet type |
Type of cooling system | Water-cooled |
Max. Torque@ revolving speed (rpm) | ≥88/1650 |
Specific fuel consumption at rated conditions (g/kW.h) | ≤244 |
Fuel tank capacity (L) | 29 |
Steering brake system | |
Type of steering system | Hydraulic/mechanical |
Type of steering gear | Cam and roller steering gear/cycloid orbitrol steering gear |
Type of braking system | Shoe type |
Transmission system | |
Clutch type | Single-action/double action |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve +sliding gear |
Type of central transmission | Spiral bevel gear type |
Final transmission mode (front/rear) | Built-in type, single-stage spur gear |
Walking system | |
Frame type | Frameless |
Working device | |
Type of hydraulic suspension system | Open-center, separated type |
Type of linkage | Three point rear linkage |
Linkage classes | Class 0 or class I |
Lift capacity(610mm point))(kN) | 5.2 |
Regulating mode | Positioning control and floating control |
Type of PTO shaft | Non-independent type |
The number of PTO shaft splines | 6 splines/8splines |
Outer diameter of PTO shaft spline | φ35/φ38 |
PTO shaft speed | 540/760 or 540/1000 |
Hydraulic system | |
Hydraulic output flow (L/min) | 26 |
