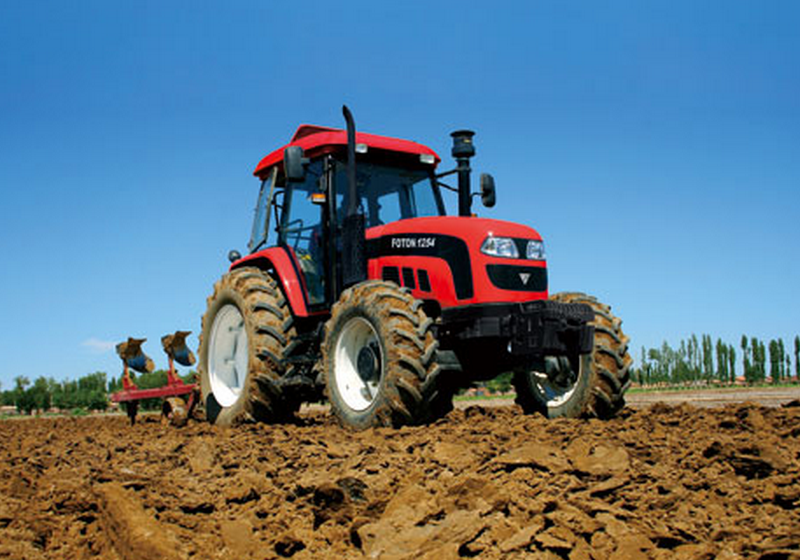

FOTON
Technical parameters | |
Drive type | 4*4 |
Overall dimension(L * W * H) | 5350*3400*3030 |
Wheelbase (mm) | 2688 |
Track(front/rear) | 1720-2100/1680-2380single, (2380double) |
Track(front/rear)regulating method | Step/stepless |
Minimum ground clearance | 400 |
Min.operating weight(kg) | 7460 |
Counterweight (max) (front/rear) | 780/480 |
Gears(forward/reverse/creeper) | 16+16 |
Theoretical speed of each gear(forward/reverse) | 3.42-34.03/2.33-23.22 |
Engine | |
Brand | Lovol Power |
Engine type | In-line, four-stroke |
Intake mode | Supercharged |
Cylinder number | 6 |
Bore | 100 |
Stroke | 127 |
Displacement(L) | 6 |
Engine rated power kW@rpm | 106.6 |
Rated speed | 2200 |
Air cleaner type | Dry type |
Type of cooling system | Forced water-cooled |
Max. Torque@ revolving speed (rpm) | 551/1600±100 |
Specific fuel consumption at rated conditions (g/kW.h) | ≤248 |
Fuel tank capacity | 350 |
Steering brake system | |
Type of steering system | Hydraulic steering |
Type of steering gear | Cycloid orbitrol steering gear |
Type of braking system | Disc type (monochip), hydraulic control |
Transmission system | |
Clutch type | Dry type, double-action clutch |
Gearbox type | Two-axis mechanical gearbox |
Gearbox shift mode | Shift sleeve/synchro |
Type of central transmission | Spiral bevel gear type |
Final transmission mode(front/rear) | Single-stage planetary bevel gear/built-in single-stage planetary gear |
Walking system | |
Frame type | Frameless |
Tyre model (front/rear wheels) | 14.9-28/18.4-38(double row) |
Working device | |
Type of hydraulic suspension system | Open-center, separated type |
Type of linkage | Three point rear linkage |
Linkage classes | Class II |
Lift capacity(610mm point))kN | ≥28 |
Regulating mode | Pusher-type lifter model:floating control, depth control. Electrical controlled lifter model:force control, position control, force and position combination control, floating control,draught-link sensing. |
Type of PTO shaft | Rear separated type |
The number of PTO shaft splines | 6 /8/21 splines |
Outer diameter of PTO shaft spline | φ35/φ38/φ35 |
PTO shaft speed | 540/1000 |
Hydraulic system | |
Hydraulic output flow (L/min) | 63 |
