Hole Digger

Quantity:
  • FOTMA

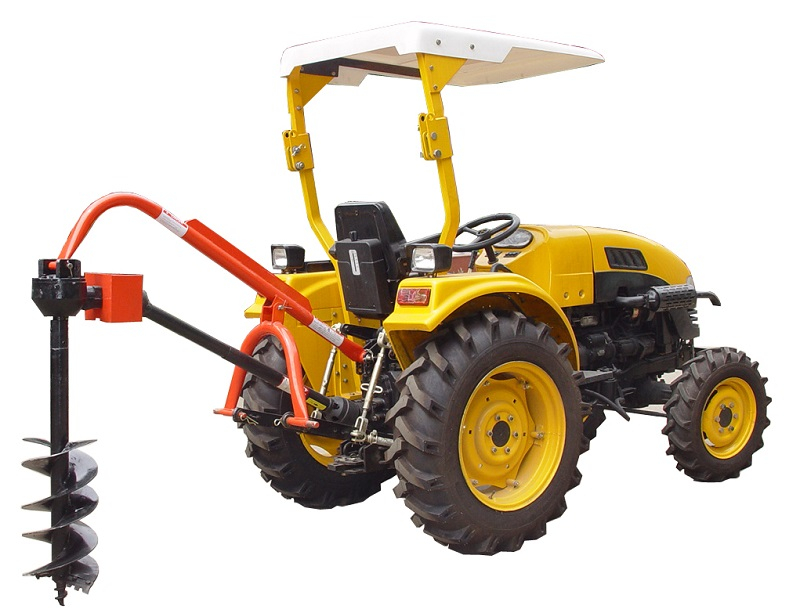

Post Hole Digger

Uses:

- Create fences with ease to keep wanted things in and unwanted things out
- For use in many soil types
- Ideally suited for fence building and tree planting around any type of property

Features:

- Auger are available in sizes from 6 to 20 inches(152 to 762mm) to suit many post sizes and soil types;
- Designed for strength and durability with re-enforced boom
- High strength, re-enforced arm

Post Hole Digger Specifications
MODEL HD-6 HD-9 HD-12 HD-14 HD-18 HD-20
DRILL DIAMETER 6"(152mm) 9"(228mm) 12"(304mm) 14"(355mm) 18"(457mm) 20"(508mm)
LENGTH OF AUGER 673mm 914mm 559mm 762mm 762mm 762mm
POWER MATCH 20-35hp 20-40hp 20-40hp 30-45hp 35-70hp 35-70hp
PTO SPEED 540rpm 540rpm 540rpm 540rpm 540rpm 540rpm
GEARBOX RATE 3;1 3;1 3;1 3;1 3.5:1 3.5:1
MACHINER WEIGHT 92kg 110kg 112kg 127kg 136kg 140kg
