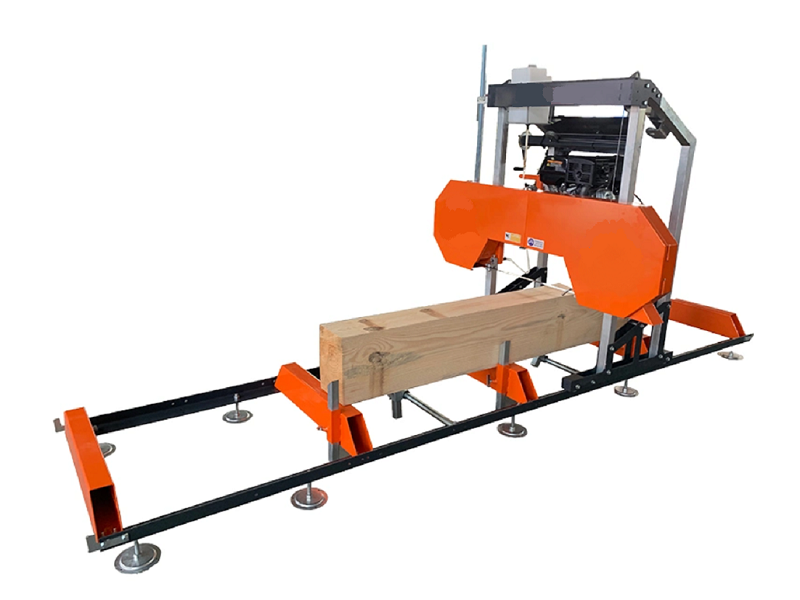

Horizontal Gasoline Log Sawmill

1. Smooth Sawhead Feed
2. Guide the sawhead through the cut with finger-tip pressure - allows you to judge the best speed for smooth cuts through knots and denser core wood.
3. Blade Lube System
Availability:
Quantity:
  • FOTMA

The sawmill is an entry-level portable sawmill packed full of impressive features with a budget-friendly price, which is designed for hobby sawyers looking for an economical solution to mill lumber. The FOTMA sawmill adds new features like the adjustable blade guide system, auto lube, an operation hour meter, wider cut capability and much more.


Fotma portable band mills has designed the FM26 sawmill for budget-minded customers looking at getting into milling their own lumber at an exceptional price point. Based on welcomed FM26 model, the FM31 offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 31" in diameter and 110" (2.79m) in length. The FM26/31 also supports an unlimited ability to extend your track to handle milling logs of any length.


Advantage

1. The machine has the features of high cutting speed,high cutting rate,high quality of final product,great reduce the lost of sawdust.

2. It is simple installation, easy operation, labor saving , and high productivity.

3. Simple , safe and pro-environment;

4. Automatic control the timber thickness, high-precision.

5. High cutting efficiency, smooth; high flatness of the cutting plate;

6. The thickness of processing wood can be adjusted according to your need

7. There's no need the professional sawyers, the ordinary workers can operate the machine expertly.


Model

FM26G

FM31G

FM26E

FM31E

Power

Gasoline9HP

Gasoline15HP

Electric 5.5KW

Electric 7.5KW

Displacement

301cc

420cc

400V 50HZ 3 phase

Cutting capacity

26''*7''*110''

31''*7''*110''

26''*7''*110''

31''*7''*110''

Frame

4 pcs

Blade size

3670*34*0.9mm

Safe cutting speed

13-15s/m

Blade speed

17m/min

Distance teeth

22mm

Blade wheel Dia

475mm

Dimension

4064*1778*1800mm

Weight

312kgs

344kgs

352kgs

380kgs


Model

HST4

HST6

Trailer axle

50*50mm

Trailer size

3970(+1000mm)*900*700mm

6000(+1000mm)*900*700mm

Trailer lights

LED light kit

Trailer leveling jacks

6 pcs

8pcs

Trailer ball coupler

2(50mm)

Finish

Galvanized

Weight

350/385kg

380/415
