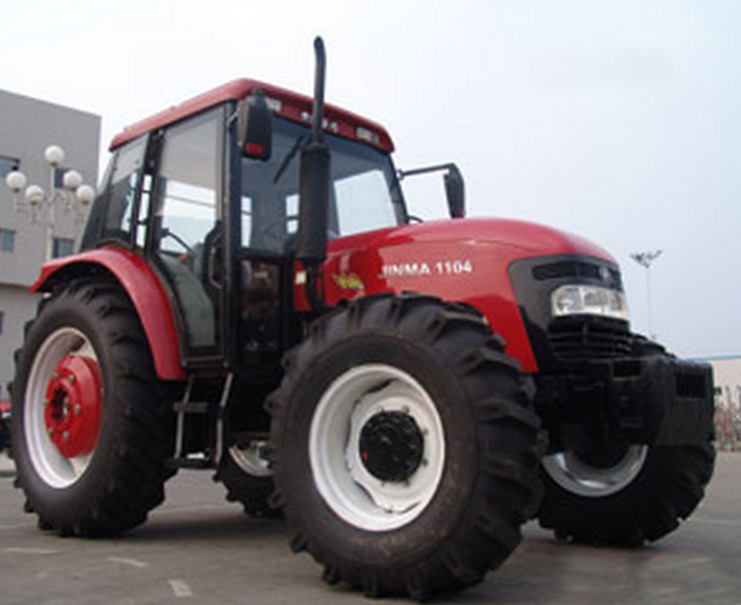

Jinma, JM
| Tractor | Model | JM-1104 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm) | 4800X2330X2980 | ||
| Wheel Track(mm) | Front | 1808-2148 | |
| Rear | 1656-2156 | ||
| Wheel Base(mm) | 2689 | ||
| Ground | 470 | ||
| Rated Traction Force(N) | 25000 | ||
| Construction Mass(kg) | 4500 | ||
| Min.Turning Radius(m) | 6.8 | ||
| Speed ( Withoutcreeper km/h) | Forward | 2.15,3.21,3.90,6.09,4.57,6.80,8.27,12.92 | |
| Reverse | 4.65,6.92,8.41,13.14 | ||
| Engine | Model | LRC6105T79 | |
| Type | 6 -cylinder 4-stroke cycle wter cooled, | ||
| Rated Power(kw/hp) | 80.9/110 | ||
| Rated Speed(rpm) | 2400 | ||
| Bore*Stroke(mm) | 105*125 | ||
| Total Displacement(L) | 6.49 | ||
| Drive | Clutch | Dual Stage | |
| Gear Box | 4*(3+1)Sleeve gear shift | ||
| Main Drive | One pair of spiral bevel gear | ||
| Differential | Bevel gear | ||
| Differential Lock | Sliding pin,foot operated | ||
| Final Transmissions | Planetary reduction gear | ||
| TRavelling | Tyre | Front | 14.9-24 |
| Rear | 16.9-38 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Oil immersed multiplate disc | ||
| Working Device | Hydraulic System | Lifting Capacity at610mm Behind Lift Point(kg) | 22000 |
| 3-Point Suspension | Category:Ⅱ | ||
| P.T.O.shaft | Rotating | 540 OR 1000 | |
| Spkine Size | 21-φ35 involute spline | ||
| OPTIONS | Synchronizer gear,fans,heating,and air-conditioned cab | ||
