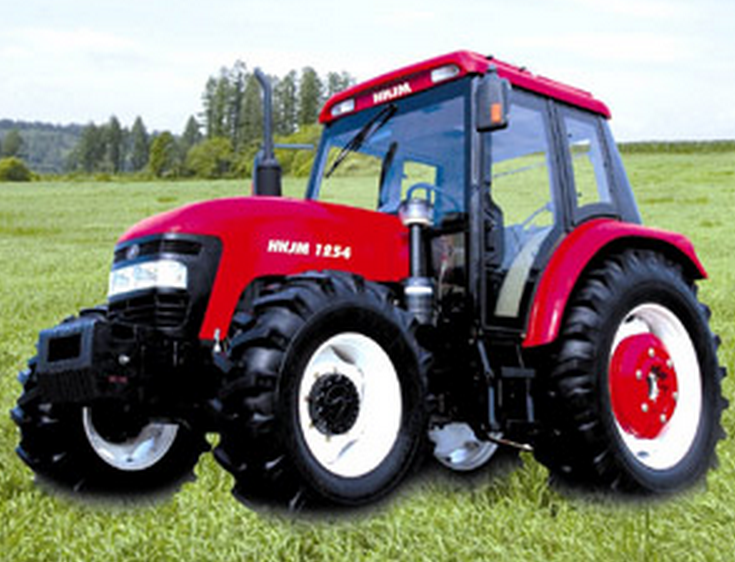

Jinma, JM
| Tractor | Model | JM-1254 | ||
| Drive Type | 4WD | |||
| Overall Dimensions L*W*H(mm) | 4800X2330X2980 | |||
| Wheel Track(mm) | Front | 1808-2148 | ||
| Rear | 1656-2156 | |||
| Wheel Base(mm) | 2689 | |||
| Ground | 475 | |||
| Rated Traction Force(N) | 27000 | |||
| Construction Mass(kg) | 4600 | |||
| Min.Turning Radius(m) | 6.8 | |||
| Speed ( Withoutcreeper km/h) | Forward | 2.24,3.34,4.06,6.34,4.76,7.08,8.61,13.46, | ||
| Reverse | 4.84,7.21,8.76,13.69 | |||
| Engine | Model | LRC6108T79 | ||
| Type | 6 -cylinder 4-stroke cycle wter cooled, | |||
| Rated Power(kw/hp) | 92/125 | |||
| Rated Speed(rpm) | 2400 | |||
| Bore*Stroke(mm) | 108*135 | |||
| Total Displacement(L) | 7.41 | |||
| Drive | Clutch | Dual Stage | ||
| Gear Box | 4*(3+1)Sleeve gear shift | |||
| Main Drive | One pair of spiral bevel gear | |||
| Differential | Bevel gear | |||
| Differential Lock | Sliding pin,foot operated | |||
| Final Transmissions | Planetary reduction gear | |||
| Tavelling | Tyre | Front | 14.9-24 | |
| Rear | 18.4-38 | |||
| Steering Gear | Hydraulic steering | |||
| Brake | Oil immersed Multiplate Disc | |||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point(N) | 26000 | |
| 3-Point Suspension | Category:II | |||
| P.T.O Shaft | Rotating Speed(rpm) | 540 or 1000 | ||
| Spline Size | 6-φ35 Rectangli spline or21-∮35 Lnvoute Spline | |||
| OPTIONS | Synchronizer gear,fans,heating,and air-conditioned cab | |||
