Jinma, JM

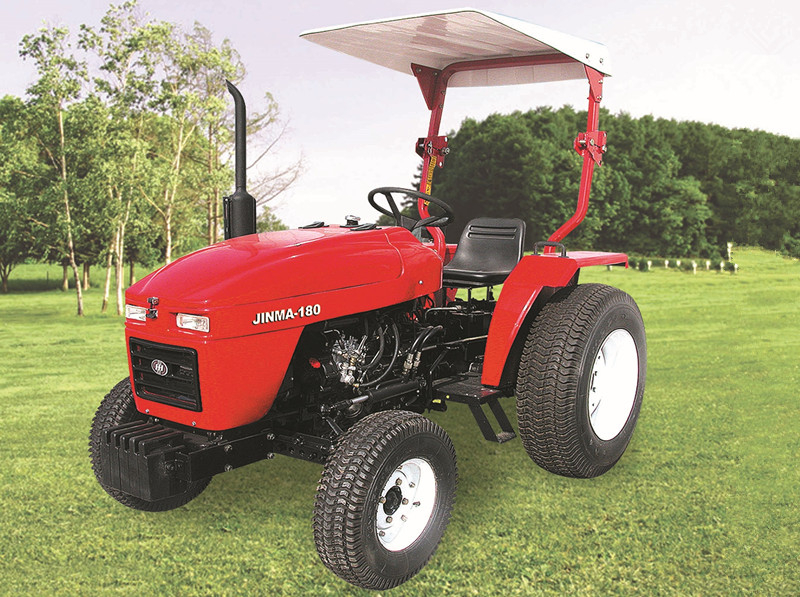

Jinma 180, JM180
Farm tractor
Wheel tractor, wheeled tractor
2WD
18HP, 13.3KW
OECD, EEC
T/T or L/C at sight
12 months since arriving at destination port
1 unit
Shanghai, China
Basic Parameters | Model | JM-180 | |||
Drive Type | 2WD | ||||
Overall Dimensions L*W*H (mm) | 3080x1280x1930 | ||||
Wheel Track (mm) | Front | 970/1070-1270 | |||
Rear | 1040-1200 | ||||
Wheel Base(mm) | 1595 | ||||
Ground Clearance (mm) | 330 | ||||
Rated Traction Force(N) | 3500 | ||||
Construction Mass(kg) | 1020 | ||||
Min. Turning Radius(m) | 2.40 | ||||
Theoretical Speed (without creeper) ( km/h) | Forward | 1.99,3.94,6.57,9.21,18.2,30.36 0.37,0.73,1.22,1.72,3.39,5.66 | |||
Reverse | 1.58,7.3,0.29,1.36 | ||||
Engine Specifications | Model | 380 | |||
Type | 3-Cylinder Vertical, water cooled,4 stroke cycle | ||||
Rated Power(kw/hp) | 13.2/18 | ||||
Rated Speed (rpm) | 2400 | ||||
Bore*Stroke (mm) | 80*90 | ||||
Total Displacement(L) | 1.357 | ||||
Drive System | Clutch | Dual-Stage | |||
Gear Box | (3+1)*2 | ||||
Main Drive | One Pair of Spiral Bevel Gearing | ||||
Differential | Bevel Gear | ||||
Differential Lock | Jaw Lock | ||||
Final Transmission | External gearing, Spur Gear | ||||
Traveling Mechanism | Tyre | Front | 4.00-16 | ||
Rear | 8.3-24 | ||||
Steering Gear | Full Hydraulic Steering | ||||
Brake | Shoe type | ||||
Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 3300 | ||
3-Point Suspension | Category: I | ||||
P.T.O Shaft | Speed (rpm) | 540/1000 | |||
Spline Size | 6-35Rectangular Spline | ||||
OPTIONS | ROLL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,DUAL STAGE CLUTCH,TURE TYRE,CAB |
