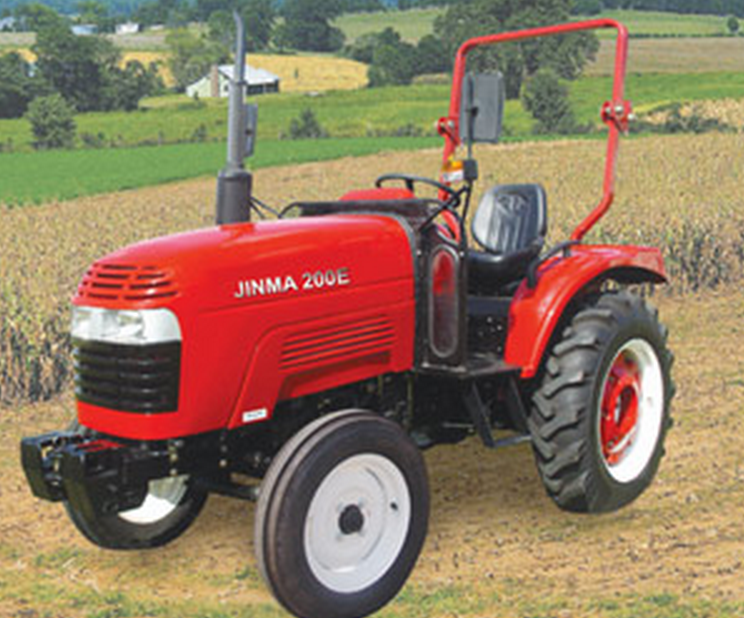

Jinma 200E Tractor

Tractor
Parameters

Model

JM-200E

Drive Type

2WD

Overall Dimensions L×W×H (mm):

3185x1440x2530

Wheel Track (mm)

Front

1070-1270

Rear

1040-1200

Wheel Base(mm)

1595

Ground Clearance (mm)

330

Rated Traction Force(N)

4000

Construction Mass(kg)

1295

Min.Turning Radius(m)

2.4

Theoretical Speed(Without creeper)( km/h)

Forward

1.99,3.94,6.57,9.21,18.2,30.36

Reverse

1.58,7.3

Theoretical Speed (With creeper)( km/h)

Forward

0.37,0.73,1.22,1.72,3.39,5.66

Reverse

0.29,1.36

Engine
Specifications

Model

KM385TE1

Type

3-Cylinder Vertical, water cooled,4 stroke cycle

Rated Power(kw/hp)

14.7/20

Rated Speed (rpm)

2350

Bore× Stroke (mm)

85×90

Total Displacement(L)

1.532

Drive
System

Clutch

Dual-Stage

Gear Box

(3+1)×2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

External gearing, Spur Gear

Traveling
Mechanism

Tyre

Front

 4.00-16

Rear

 8.3-24

Steering Gear

Full Hydraulic Steering

Brake

Shoe type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

3300

3-Point Suspension

Category :I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6-∮35Rectangular Spline
