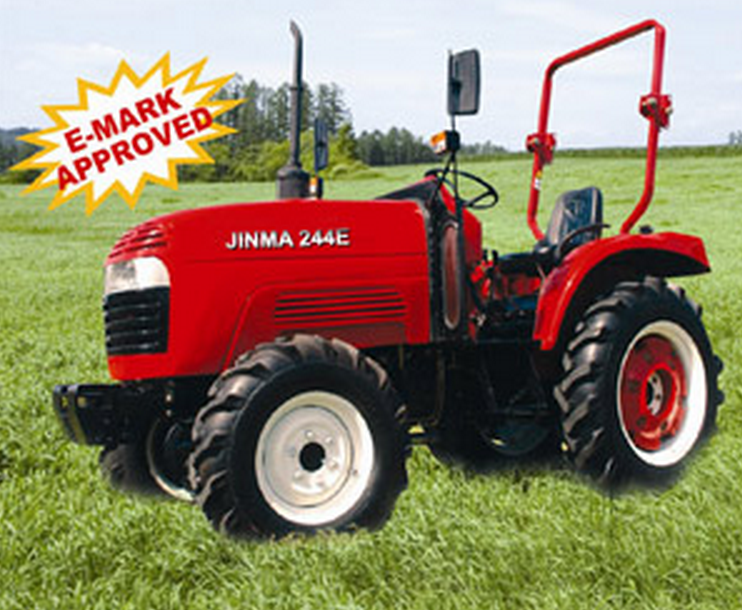

Jinma, JM
| Model | JM-244E | ||||
| Drive Type | 4WD | ||||
| Overall Dimensions | 3185x1440x2530 | ||||
| Wheel Track(mm) | Front | 1100 | |||
| Rear | 1040-1200 | ||||
| Wheel Base(mm) | 1645 | ||||
| Ground Clearance (mm) | 295 | ||||
| Rated Traction Force(N) | 5980 | ||||
| Construction Mass(kg) | 1380 | ||||
| Min.Turning Radius(m) | 2.80 | ||||
| Theoretical Speed(Without creeper)( km/h) | Forward | 1.73,3.42,5.71,8.01,15.80,26.40 | |||
| Reverse | 1.37,6.35 | ||||
| Engine | Model | KM385TE | |||
| Type | 3-Cylinder Vertical,water cooled,4 stroke cycle | ||||
| Rated Power(kw/hp) | 17.6/24 | ||||
| Rated Speed (rpm) | 2350 | ||||
| Bore*Stroke(mm) | 85*90 | ||||
| Total Displacement(L) | 1.532 | ||||
| Drive | Clutch | Dual-Stage | |||
| Gear Box | (3+1)*2 | ||||
| Main Drive | One Pair of Spiral Bevel Gearing | ||||
| Differential | Bevel Gear | ||||
| Differential Lock | Jaw Lock | ||||
| Final Transmission | External gearing, Spur Gear | ||||
| Traveling | Tyre | Front | 6.00-16 | ||
| Rear | 9.5-24 | ||||
| Steering Gear | Full Hydraulic Steering | ||||
| Brake | Disc type | ||||
| Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 4200 | ||
| 3-Point Suspension | Category:I | ||||
| P.T.O | Speed (rpm) | 540/1000 | |||
| Spline Size | 6-Φ35Rectangular Spline | ||||
| OPTIONS | ROLL BAR,CANOPY | ||||
