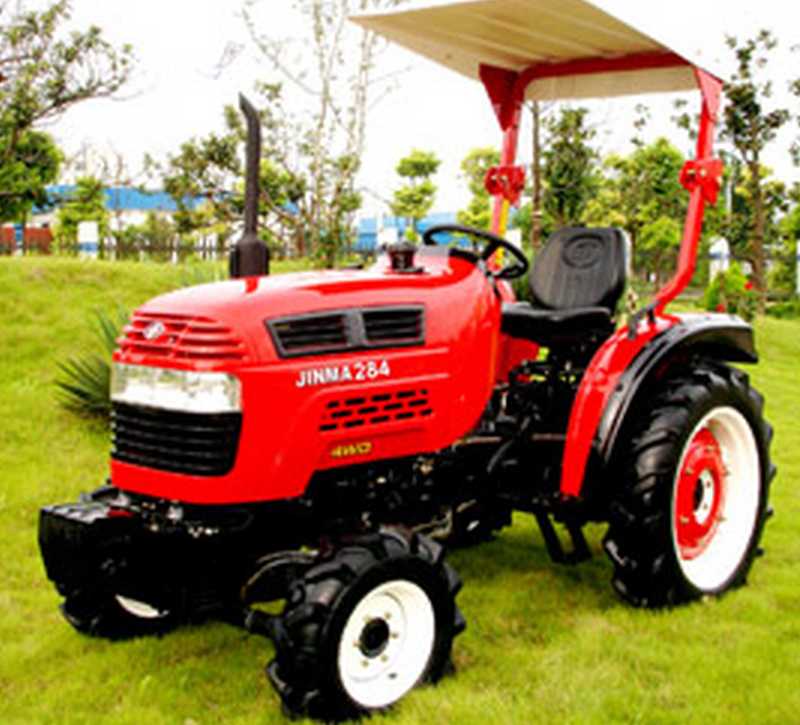

Jinma, JM
Model | JM-284 | ||||
Drive Type | 4WD | ||||
Overall Dimensions | 3080x1440x1930 | ||||
Wheel Track(mm) | Front | 1100 | |||
Rear | 1040-1200 | ||||
Wheel Base(mm) | 1645 | ||||
Ground Clearance (mm) | 295 | ||||
Rated Traction Force(N) | 5980 | ||||
Construction Mass(kg) | 1140 | ||||
Min.Turning Radius(m) | 2.80 | ||||
Theoretical Speed(Without creeper)( km/h) | Forward | 1.73,3.42,5.71,8.01,15.80,26.40 | |||
Reverse | 1.37,6.35 | ||||
Engine | Model | 385 | |||
Type | 3-Cylinder Vertical,water cooled,4 stroke cycle | ||||
Rated Power(kw/hp) | 20.5/28 | ||||
Rated Speed (rpm) | 2400 | ||||
Bore*Stroke(mm) | 85*90 | ||||
Total Displacement(L) | 1.532 | ||||
Drive | Clutch | Dual-Stage | |||
Gear Box | (3+1)*2 | ||||
Main Drive | One Pair of Spiral Bevel Gearing | ||||
Differential | Bevel Gear | ||||
Differential Lock | Jaw Lock | ||||
Final Transmission | External gearing, Spur Gear | ||||
Traveling | Tyre | Front | 6.00-16 | ||
Rear | 9.5-24 | ||||
Steering Gear | Full Hydraulic Steering | ||||
Brake | Disc type | ||||
Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 4200 | ||
3-Point Suspension | Category:I | ||||
P.T.O | Speed (rpm) | 540/1000 | |||
Spline Size | 6-Φ35Rectangular Spline | ||||
OPTIONS | ROLL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB |
