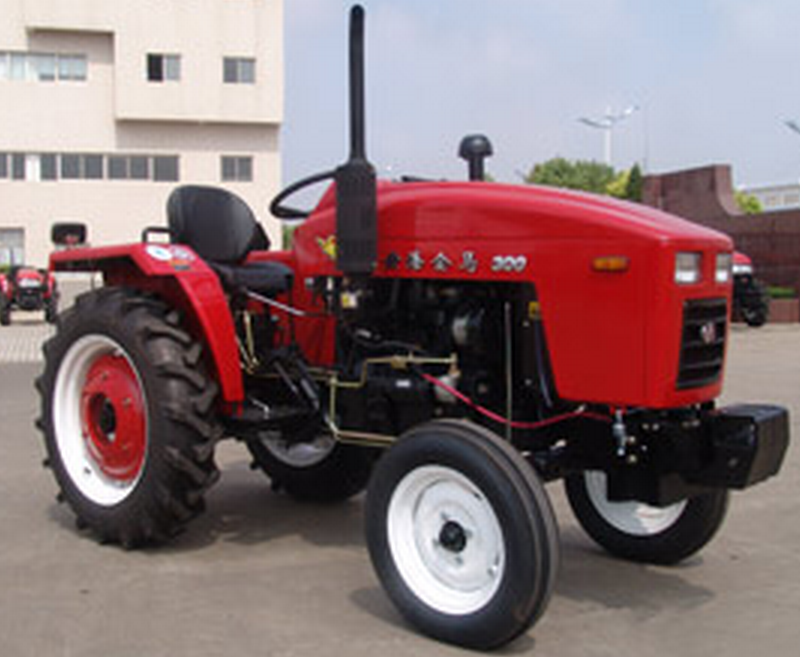

Jinma, JM
| Tracor | Model | JM-300 | |
| Drive Type | 2WD | ||
| Overall Dimensions L*W*H(mm): | 3357x1435x1954 | ||
| WheelTrack(mm) | Front | 1050-1450 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1776.5 | ||
| Ground Clearance (mm) | 355 | ||
| Rated Traction Force(N) | 5900 | ||
| Construction Mass(kg) | 1510 | ||
| Min.Turning Radius(m) | 3.5 | ||
| Theoretical Speed (With out creeper gear(km/h) | Forward | 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867 | |
| Reverse | 2.861,13.2 | ||
| Engine | Model | TY395 | |
| Type | 3-cylinder, Vertical | ||
| Rated Power(kw/hp) | 22.1/30 | ||
| Rated Speed (rpm) | 2200 | ||
| Bore*Stroke(mm) | 95*105 | ||
| Total Displacement(L) | 2.23 | ||
| Drive | Clutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear,External,Gearing | ||
| Travelling | Tyre | Front | 5.00-15 |
| Rear | 11.2-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
| Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 4900 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft | Speed (rpm) | 540/720 or | |
| Spline Size | 6-Φ35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB | ||
