Jinma, JM

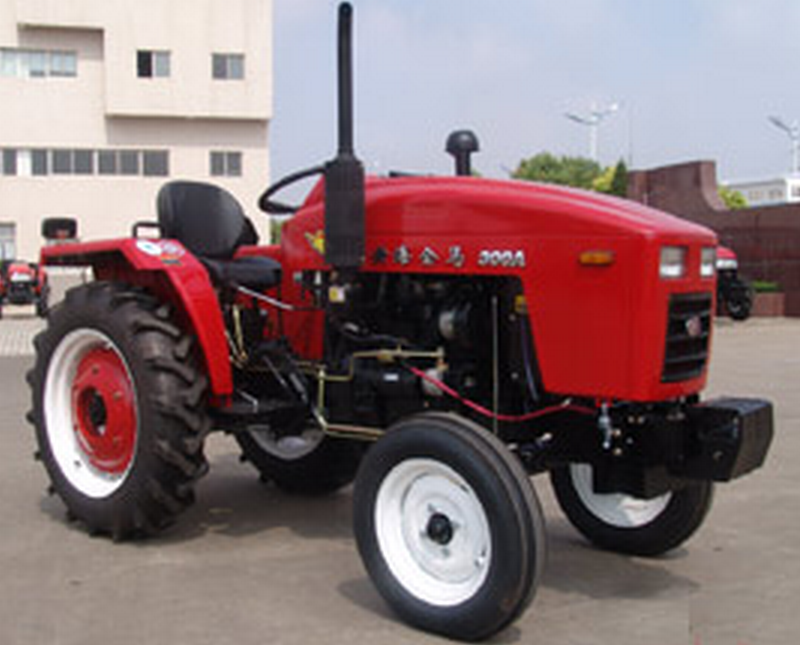

| Tracor | Model | JM-300A | |
| Drive Type | 2WD | ||
| Overall Dimensions L*W*H(mm): | 3200x1280x1930 | ||
| WheelTrack(mm) | Front | 1050-1450 | |
| Rear | 1040-1200 | ||
| Wheel Base(mm) | 1675 | ||
| Ground Clearance (mm) | 340 | ||
| Rated Traction Force(N) | 5200 | ||
| Construction Mass(kg) | 1290 | ||
| Min.Turning Radius(m) | 2.75 | ||
| Theoretical Speed (With out creeper gear(km/h) | Forward | 2.12,3.24,5.08,7.00,9.28,14.97,23.49,32.38 | |
| Reverse | 2.79/13.52 | ||
| Engine | Model | ZN390T | |
| Type | 3-cylinder, Vertical | ||
| Rated Power(kw/hp) | 22.1/30 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore*Stroke(mm) | 90*95 | ||
| Total Displacement(L) | 1.813 | ||
| Drive | Clutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear,External,Gearing | ||
| Travelling | Tyre | Front | 5.00-15 |
| Rear | 9.5-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
| Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 5000 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft | Speed (rpm) | 540/720 or | |
| Spline Size | 6-Φ35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB | ||
