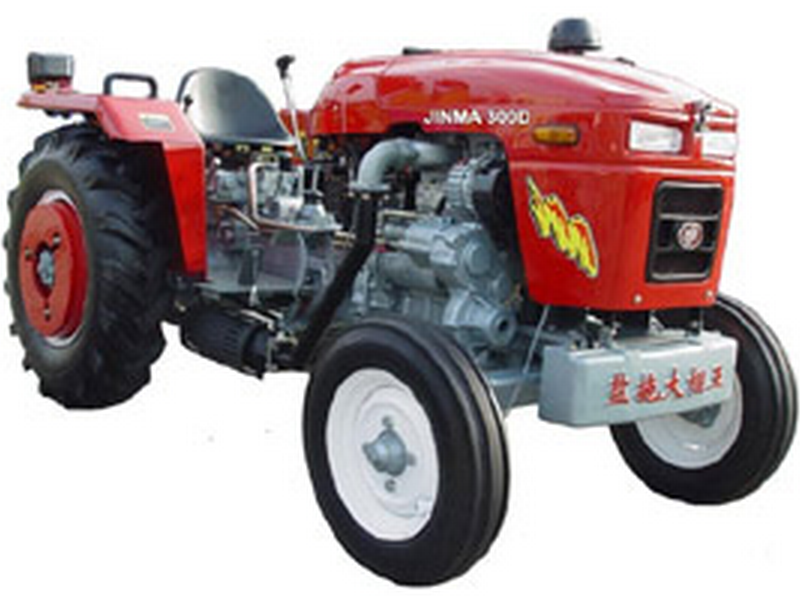

Jinma 300D Tractor

Tractor
Parameters

Model

JM-300D

Drive Type

2WD

Overall Dimensions
L*W*H(mm):

2500x1200x1050

Wheel Track (mm)

Front

970

Rear

980

Wheel Base(mm)

1475

Ground Clearance (mm)

200

Rated Traction Force(N)

4000

Construction Mass(kg)

1000

Min.Turning Radius(m)

2.80

Theoretical Speed
(Without creeper)( km/h)

Forward

1.74,2.65,4.16,5.73,
8.04,12.2,19.2,26.5

Reverse

2.29,11

Engine
Specifications

Model

TY2102

Type

2-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

22.1/30

Rated Speed (rpm)

2400

Bore*Stroke(mm)

102*105

Total Displacement(L)

Drive
System

Clutch

9”single Stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

Spur Gear , External Gearing

Travelling
Mechanism

Tyre

Front

4.00-12

Rear

7.50-16/ 9.5-16

Steering Gear

Full Hydraulic Steering

Brake

Shoe type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

4200

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

720/540&1000

Spline Size

6-Φ35Rectangular Spline
