Jinma, JM

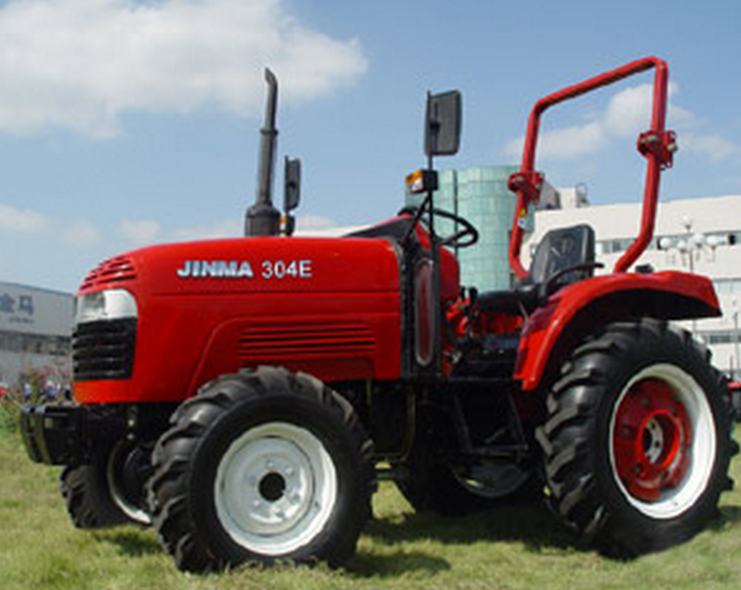

Tractor | Model | JM-304E | |
Drive Type | 4WD | ||
Overall Dimensions L*W*H(mm): | 3352*1485*2420 | ||
WheelTra(mm) | Front | 1200 | |
Rear | 1200-1500 | ||
Wheel Base(mm) | 1833.5 | ||
Ground Clearance (mm) | 292 | ||
Rated Traction Force(N) | 6400 | ||
Construction Mass(kg) | 1935 | ||
Min.Turning Radius(m) | 4.15 | ||
Theoretical Speed (With out creeper gear(km/h) | Forward | 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867 | |
Reverse | 2.861,13.2 | ||
Engine | Model | 4L22T1 | |
Type | 4-cylinder, Vertical | ||
Rated Power(kw/hp) | 22.1/30 | ||
Rated Speed (rpm) | 2350 | ||
Bore*Stroke(mm) | 85*95 | ||
Total Displacement(L) | 2.156 | ||
Drive | Clutch | Dual stage | |
Gear Box | (4+1)*2 | ||
Main Drive | One Pair of Spiral Bevel Gearing | ||
Differential | Bevel Gear | ||
Differential Lock | Jaw Lock | ||
Final Transmissions | Spur Gear,External,Gearing | ||
Travelling | Tyre | Front | 7.50-16 |
Rear | 11.2-24 | ||
Steering Gear | Power Steering | ||
Brake | Disc type | ||
Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 4900 |
3-Point Suspension | Category:I | ||
P.T.O | Rotating | 540/1000 | |
Spline Size | 6-Φ35Rectangular Spline | ||
OPTIONS | ROLL BAR,CANOPY,HYDRAULIC STEERING,DUAL STAGE CLUTCH |
