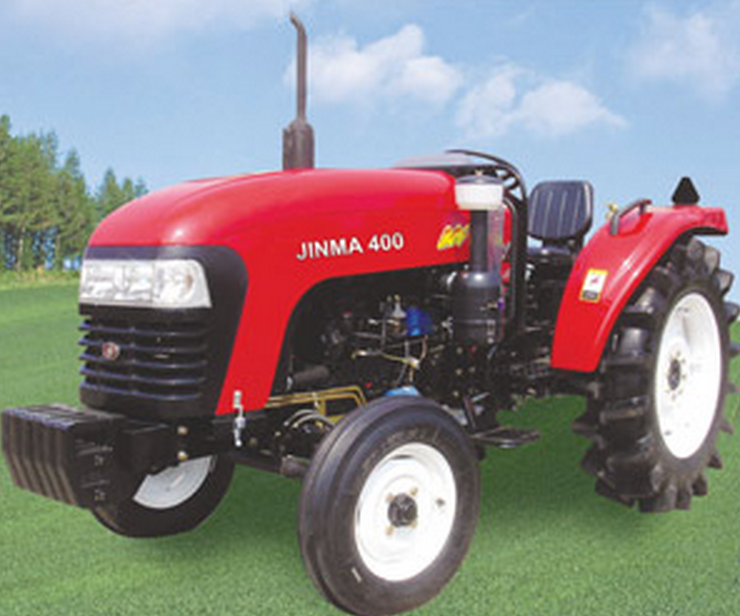

Jinma 400 Tractor

Tracor
Parameters

Model

JM-400

Drive Type

2WD

Overall Dimensions  L*W*H(mm):

3825x1625x2120

Wheel Track(mm)

Front

1250-1550

Rear

1300-1600

Wheel Base(mm)

1877.5

Ground Clearance (mm)

345

Rated Traction Force(N)

8200

Construction Mass(kg)

1886

Min.Turning Radius(m)

3.4

Theoretical Speed(Without creeper) ( km/h)

Forward

2.054,3.017,4.905,6.440,9.224,13.550,22.028,28.923

Reverse

3.047,4.477,7.278,9.556

Theoretical Speed(With creeper)(km/h)

Forward

0.307,0.452,0.735,0.964,1.381,2.028,3.297,4.328

Reverse

0.456,0.670,1.090,1.431

Engine
Specifications

Model

SL3105BT/490BT

Type

3/4-Cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

29.4/40

Rated Speed (rpm)

2200/2400

Bore*Stroke(mm)

105*117 /90X105

Total Displacement(L)

3.039/2.672

Drive
System

Clutch

Dual stage

Gear Box

4*(2+1)Sleeve gear

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final transmission

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

6.00-16

Rear

11.2-28

Steering Gear

Mechanical

Brake

Oil immerszd multiplate disc

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

6700

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000
Or 540/1000

Spline Size

6-Φ35Rectangular Spline
