Jinma, JM

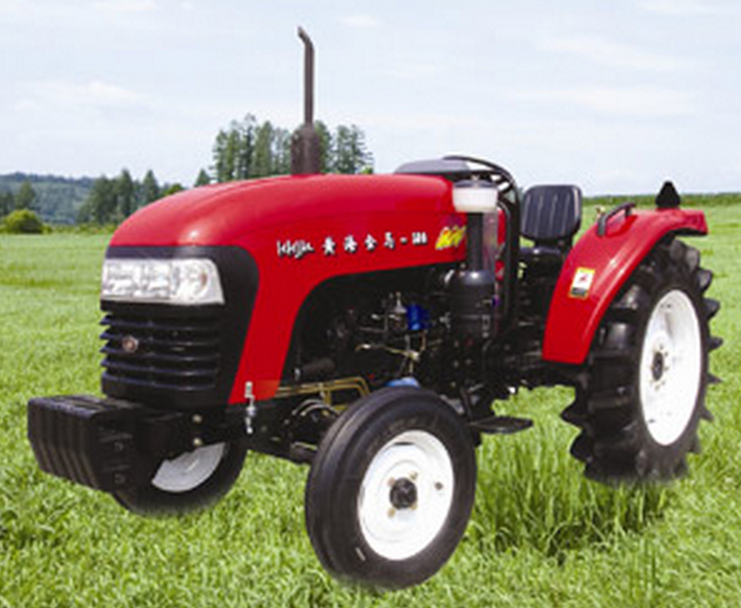

| MODEL | JM-400A | ||
| Basic Parameters | Drive Type | 2WD | |
| Overall Dimensions L*W*H(mm) | 3420*1435*1515 | ||
| Wheel Track(mm) | Front | 1050-1450 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1839 | ||
| Ground Clearance(mm) | 355 | ||
| Rated Traction Force(N) | 7000 | ||
| Min.use weight(kg) | 1510 | ||
| Min.Turming Radirs(m) | 3.5 | ||
| Speed(km/h) | Forward | 2.41, 3.21, 4.5, 6.68, 11.07, 14.81, 20.76, 30.81 | |
| Reverse | 3.05,14.09 | ||
| Engine | Model | ZN4900BT | |
| Type | 3/4-Cylinder | ||
| Rated Power(kw/hp) | 29.4/40 | ||
| RatedSpeed(rom) | | ||
| Bore*Stroke(mm) | 90*95 | ||
| Total Displacement(L) | 2.545 | ||
| Drive System | Cutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair Spiral Bevel Gearing | ||
| Differentiat | Bevel Gear | ||
| Differentiat Lock | Sliding Pin,Foot Operated | ||
| Final Transmission | Planeatry Reduction Gear | ||
| Traveling Mechanism | Tyre | Front | 6.00-16 |
| Rear | 11.2-28 | ||
| Steering Gear | Mechanical or Hydraulic Steering | ||
| Brake | Oil lmmerszd Multiplate Disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift (N) | 6600 |
| 3-Point Suspension | Category:1 | ||
| P.T.OShaft | Rotating Speed(rpm) | 540/720 or 540/1000 | |
| Spline Size | 6- 35 Rectangular Spline | ||
| OPTIONS | SHFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB | ||
| MODEL | JM-400A | ||
| Basic Parameters | Drive Type | 2WD | |
| Overall Dimensions L*W*H(mm) | 3420*1435*1515 | ||
| Wheel Track(mm) | Front | 1050-1450 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1839 | ||
| Ground Clearance(mm) | 355 | ||
| Rated Traction Force(N) | 7000 | ||
| Min.use weight(kg) | 1510 | ||
| Min.Turming Radirs(m) | 3.5 | ||
| Speed(km/h) | Forward | 2.41, 3.21, 4.5, 6.68, 11.07, 14.81, 20.76, 30.81 | |
| Reverse | 3.05,14.09 | ||
| Engine | Model | ZN4900BT | |
| Type | 3/4-Cylinder | ||
| Rated Power(kw/hp) | 29.4/40 | ||
| RatedSpeed(rom) | | ||
| Bore*Stroke(mm) | 90*95 | ||
| Total Displacement(L) | 2.545 | ||
| Drive System | Cutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair Spiral Bevel Gearing | ||
| Differentiat | Bevel Gear | ||
| Differentiat Lock | Sliding Pin,Foot Operated | ||
| Final Transmission | Planeatry Reduction Gear | ||
| Traveling Mechanism | Tyre | Front | 6.00-16 |
| Rear | 11.2-28 | ||
| Steering Gear | Mechanical or Hydraulic Steering | ||
| Brake | Oil lmmerszd Multiplate Disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift (N) | 6600 |
| 3-Point Suspension | Category:1 | ||
| P.T.OShaft | Rotating Speed(rpm) | 540/720 or 540/1000 | |
| Spline Size | 6-35 Rectangular Spline | ||
| OPTIONS | SHFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB | ||
